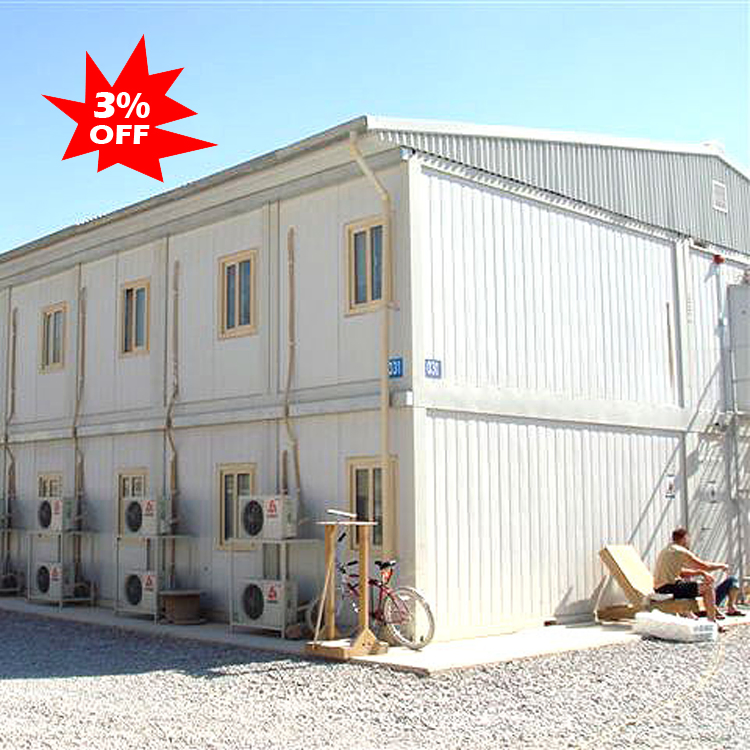

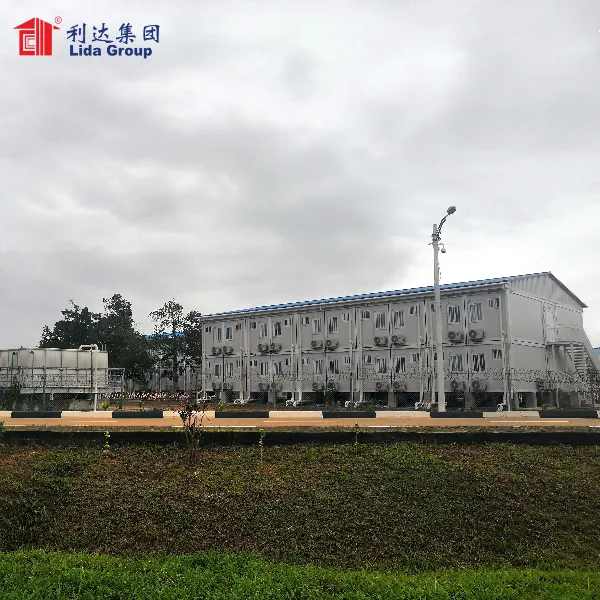

Containerized Modules Modular Containerized Units

1 / 5

Containerized Modules Modular Containerized Units

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:LD-C

Material:Steel Structure

Steel Structure:H Beam Q235/345

Color:Request

Use:Office, House, Camp, School, Hotel

Key Words:Container House

Wall:Sandwich Panel Wall

Window:PVC Sliding Window

Door:Aluminum Alloy Door

Service Life:More Than 20 Years

Size:6056X2438X2896mm

Origin:China

HS Code:9406000090

Capacity:3000 Sets/Month

Characteristics

Easy to assemble and disassemble for several times without damage.

Could be lifted, fixed and combined freely.

Heatproof and waterproof.

Cost saving and convenient transportation (Each 4 container house can be loaded in one 20 ft standard container).

Service life can reach up to 10 - 15 years.

Installation, supervision and training services available.

Technical Parameters

Standard Prefabricated House Parameters
Wind Resistance	Grade 11 (wind speed ≤ 111.5km/h)
Earthquake Resistance	Grade 7
Fire Proof	B2 Grade
Roof Live Load	0.5kn/m2
Wall Heat Transmission	0.35Kcal/m2hc
Floor Live Load	2.0kn/m2

Material Specifications

Steel Framework

Light steel structure, material Q235. Surface: sand blasting, epoxy basic painting 55μm, final vinyl acrylic painting 55μm thick. Includes 8 standard corner fittings and PVC rainwater pipes.

Floor System

Structure: 4mm steel girder, 60x40x1.5mm square tube purlins. Insulation: 75mm rock wool. 15mm plywood for general rooms; 20mm cement board for wet areas. 1.5mm PVC or anti-slip aluminum finish.

Ceiling & Roof

Exterior: 1.2mm stamping steel plate with epoxy painting. Insulation: 75mm rock wool. Interior: 9mm MDF laminated panel or 10mm fire-proof board. Includes 4 corner PVC drain pipes.

Wall Panels

Width: 1150mm, Thickness: 75mm. Layers: 0.5mm galvanized and painted steel sheets. Insulation: EPS (12kg/m3), Rock Wool (120kg/m3), or PU (45kg/m3).

Doors & Windows

External Door: Sandwich panel (850*2100mm) with cylinder lock. Windows: PVC sliding windows (1130*1000mm) with fly screens or rolling shutters.

Main Material List

No.	Items	Description
1	Material	Light steel structure material Q235
2	Wall	Sandwich panel with steel plate surface (75mm)
3	Roof	1.2mm steel plate + 75mm Rock wool + 9mm MDF
4	Windows	PVC sliding window
5	Doors	Aluminum frame with 50mm EPS insulation foam

Loading & Transport

Bulk packing in container loading. 1x40HQ can load 5 units of 20ft container houses.

Frequently Asked Questions

Q1: What is the estimated service life of this container house? The service life of the steel structure can reach more than 20 years with proper maintenance.

Q2: How does the unit perform against extreme weather? It is designed for Grade 11 wind resistance (up to 111.5km/h) and Grade 7 earthquake resistance.

Q3: What materials are used for wall and roof insulation? We utilize high-quality insulation materials including Rock Wool, EPS, or PU panels depending on your specific thermal requirements.

Q4: How are these houses transported? Units are typically loaded in bulk. A single 40FT HQ container can accommodate approximately 5-6 units of 20ft container houses.

Q5: Can these units be used for purposes other than housing? Yes, these versatile modules are ideal for offices, labor camps, schools, hotels, and temporary clinics.

Q6: Are the materials fireproof? The standard prefabricated house elements meet B2 grade fire-proof specifications.
