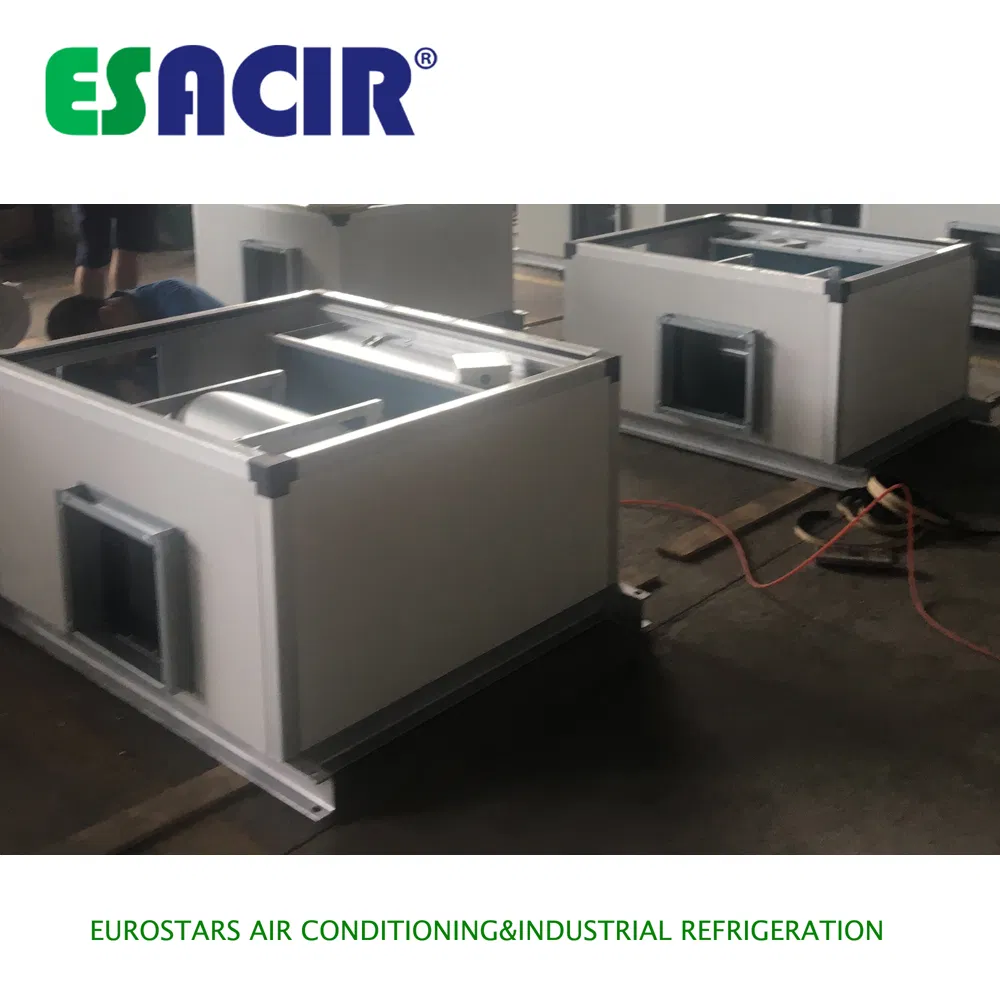

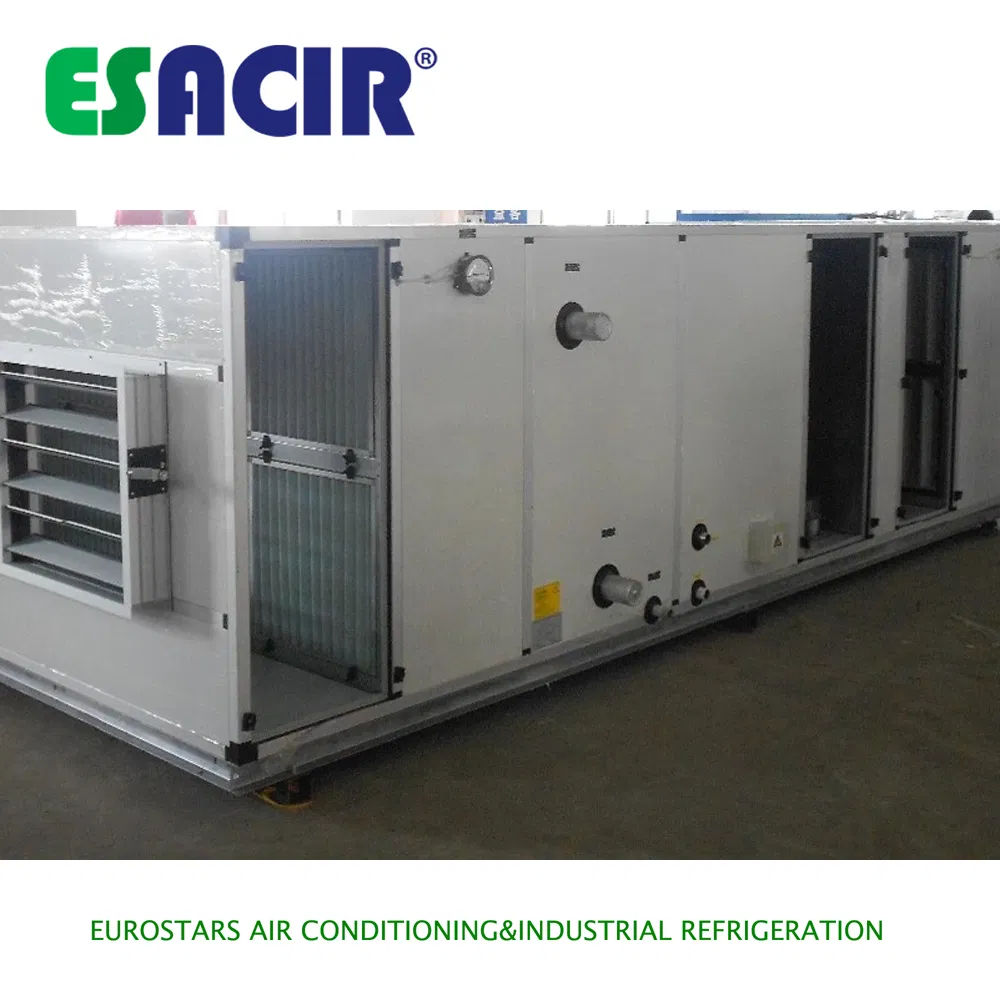

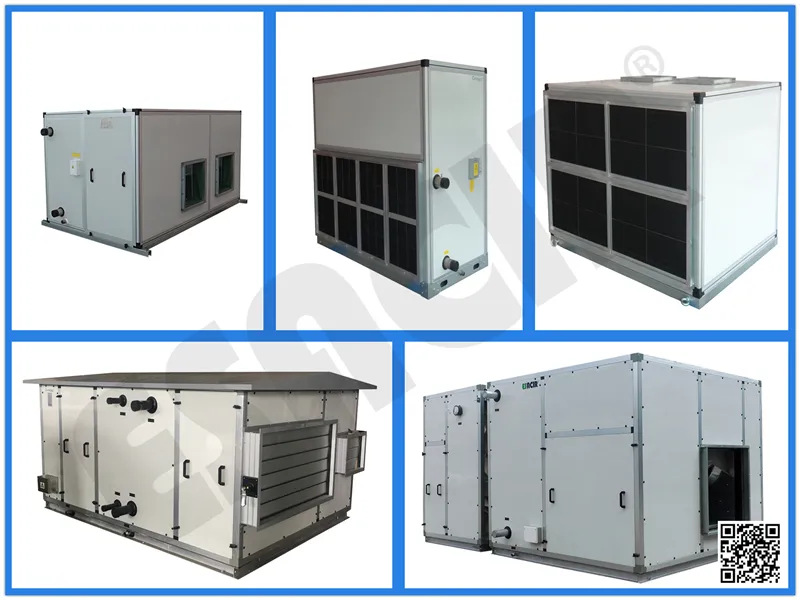

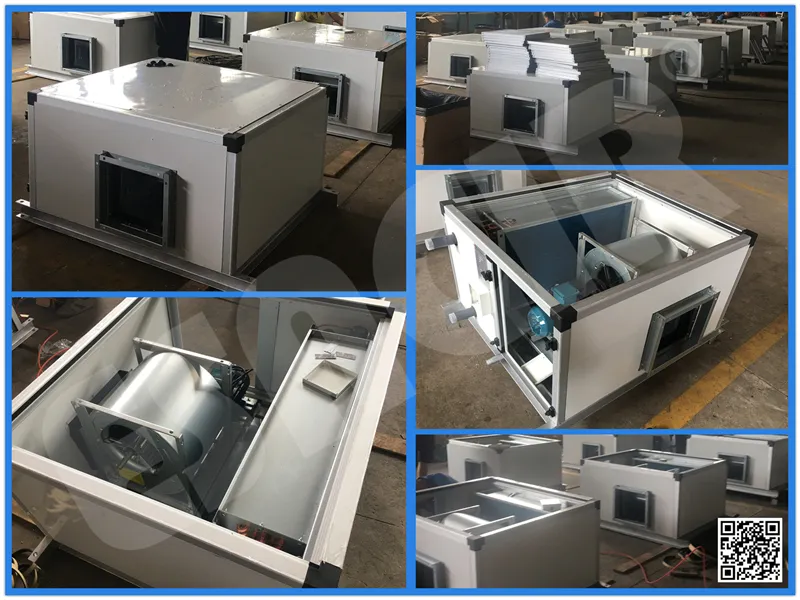

Medical Ahu Modular Air Handling Unit

Customization:	Available
Type:	Air Handling Unit
Air Tube Material:	Galvanized Sheet

Send Inquiry

Product Description

Basic Information

Model NO.

EST10CD4

Corrosion Durability

Higher

Operating Voltage

380/400 VAC

Noise Level

Low

Application Fields

Air-Conditioning (HVAC)System

Mounting

Ceiling Mount

Lifetime

>20 years

Certification

ISO, CE

Condition

New

AHU Construction

25mm/ 50mm/ 75mm Double Skin

Control

Option for PLC, DDC

Coil Material

Copper Tube with Copper/Aluminium Fins

AHU Framework

Aluminum

Filtration

Pre-Filter, Bag Filter, HEPA Filter

Insulation

PU Foam (43-48kg/M3)

HS Code

8415830000

Product Features & Advantages

High-strength galvanized steel sheet with electrostatic powder coating for superior anti-corrosion performance.

Advanced PE or PU insulation material prevents cold bridge effects and provides excellent sound absorption.

Three-gear speed single-phase capacitance asynchronous motor to meet various air flow requirements.

High-efficiency forward-wing centrifugal blower with low-noise operation and imported high-precision ball bearings.

Thin-walled brass tubes and new-style fins ensure optimal heat transfer efficiency for the coil.

Technical Specifications (4-Row Return Air)

Model	Air Flow (*1000CMH)	Total Pressure (Pa)	Power (kW)	Cooling (kW)	Heating (kW)	Water Flow (L/min)	Resistance (kPa)	Pipe DN
EST2CD4	2	250	0.25	12.7	17.6	36	8.8	25
EST4CD4	4	300	0.75	26	36.2	74.4	21.6	32
EST6CD4	6	350	1.5	37.3	52.1	106.8	20.6	40
EST10CD4	10	350	2.2	60.4	84	172.8	21.6	50
EST12CD4	12	350	3	73	101.7	209.4	22.5	50

Key Components Detail

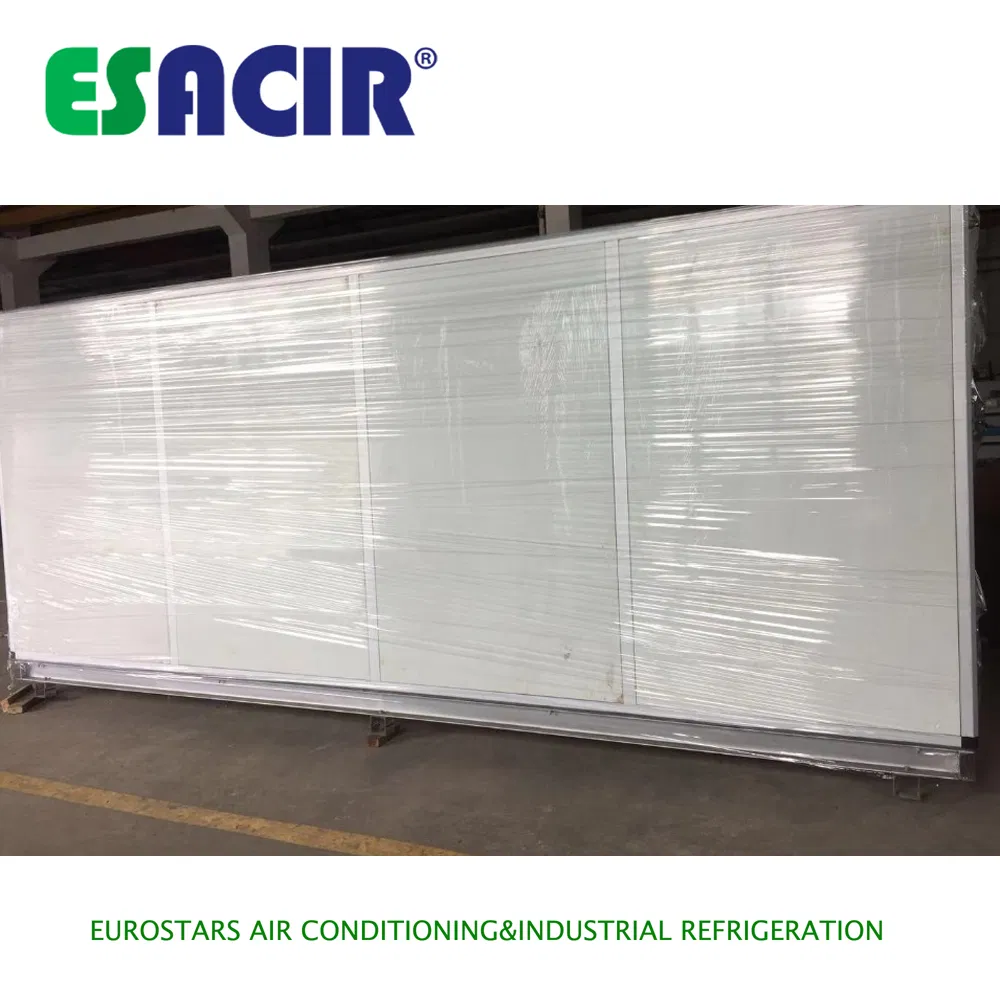

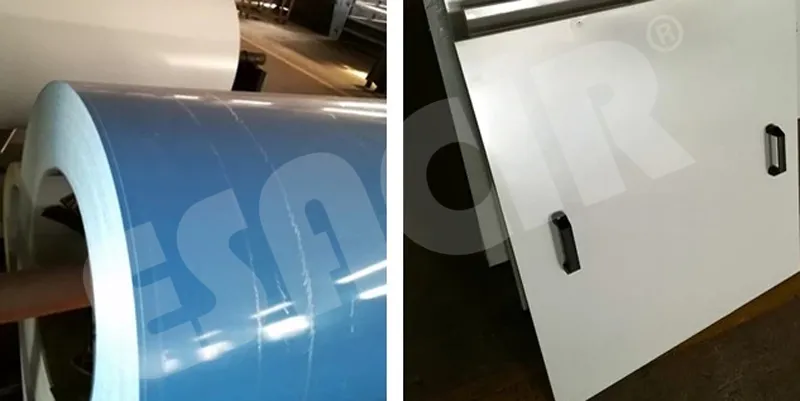

Casing Panel & Insulation

Double skin sandwich panels with high-density polyurethane foam (min 48kg/m3). The 6-layer insulation coating complies with 500h salt spray testing for extreme durability.

Structural Framework

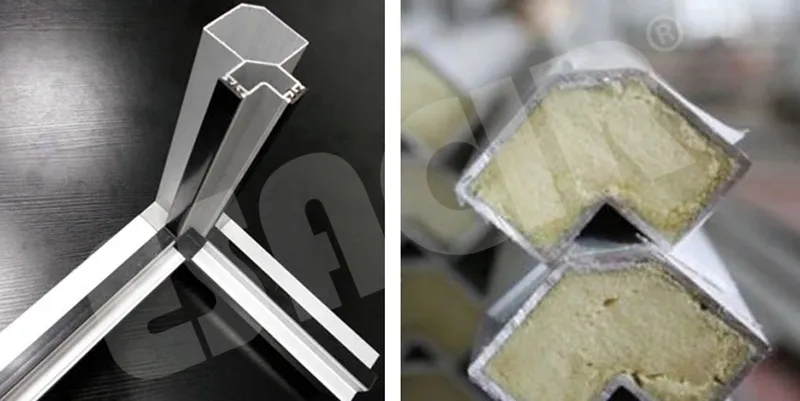

Penta-post heavy gauge aluminum profiles with fiber-reinforced PE corners. Thermal bridge-free design with anodized surface treatment for corrosion resistance.

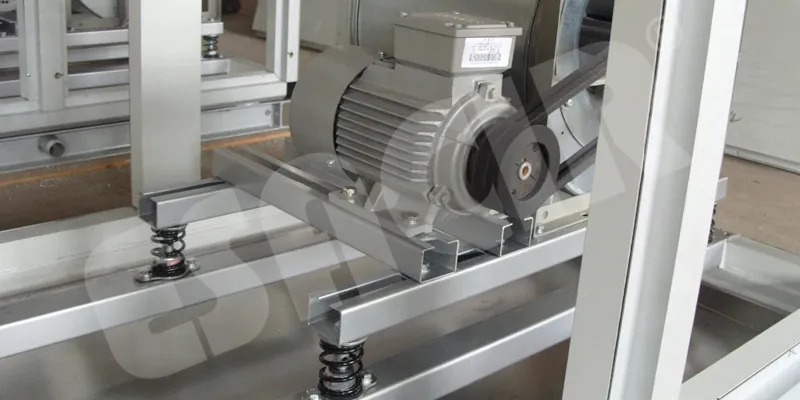

Fan and Motor System

Options for direct or belt drive, including forward/backward curve centrifugal and EC fans. Motors feature Class F insulation and IP54/IP55 protection for stable operation.

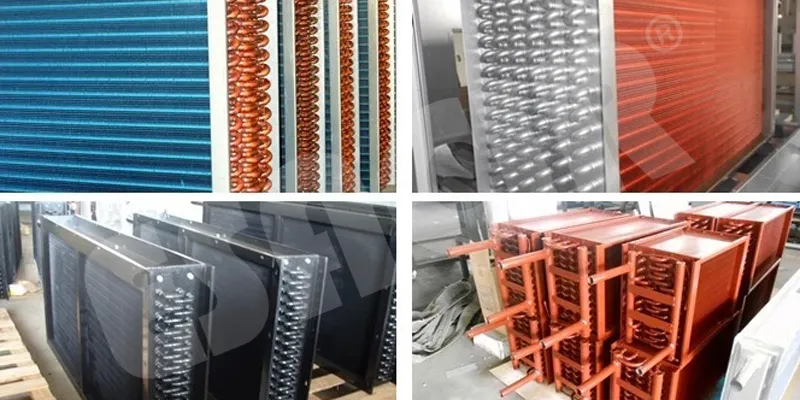

High-Efficiency Coils

Calculation-optimized for maximum heat transfer. All units tested at 30bar underwater. Multiple coating options available including Epoxy and Heresite.

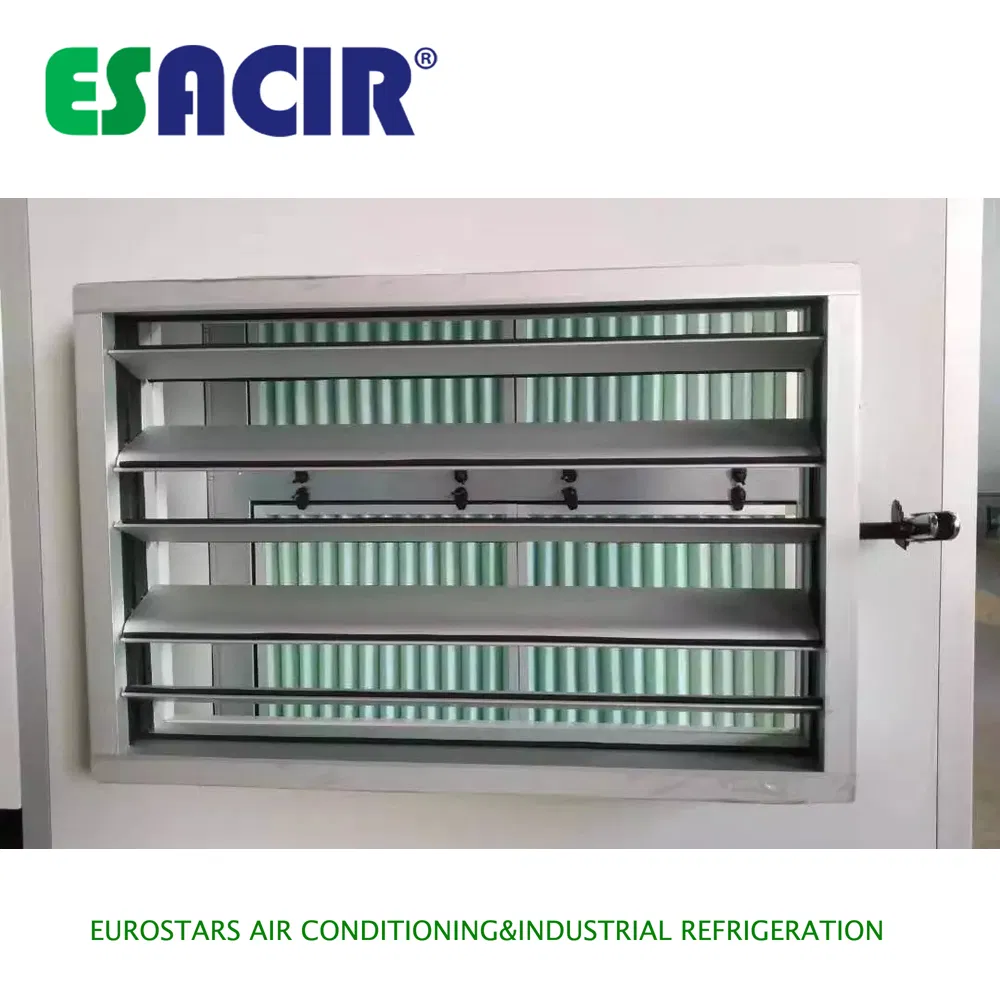

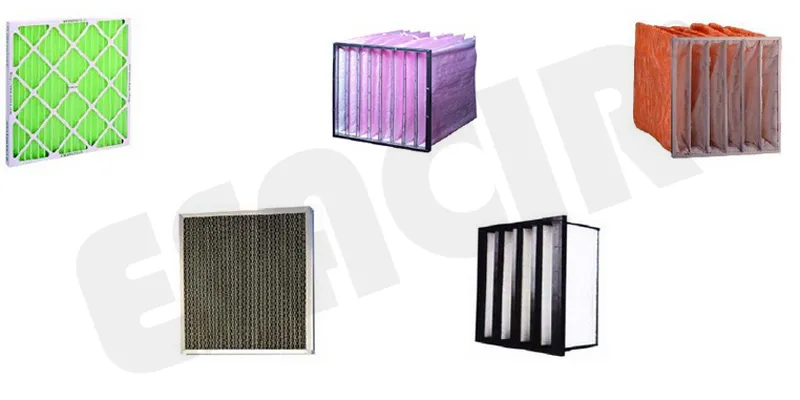

Advanced Filtration Options

HEPA Filters: Achieve up to 99.97% efficiency, perfect for clean rooms and hospitals.

Bag & Panel Filters: Versatile solutions for standard HVAC dust removal.

Electrostatic & Roll Filters: Optimized for high-velocity filtration and ionized particle removal.

Why Choose Our Solutions?

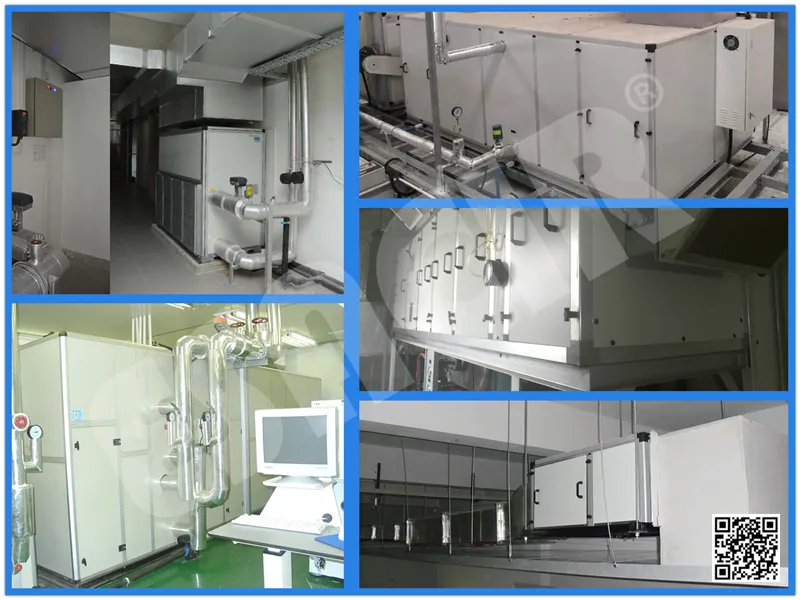

Proven Quality: Successfully deployed across diverse global markets including Southeast Asia, Middle East, and the Americas.

Custom Engineering: Tailored design drawings based on practical site requirements.

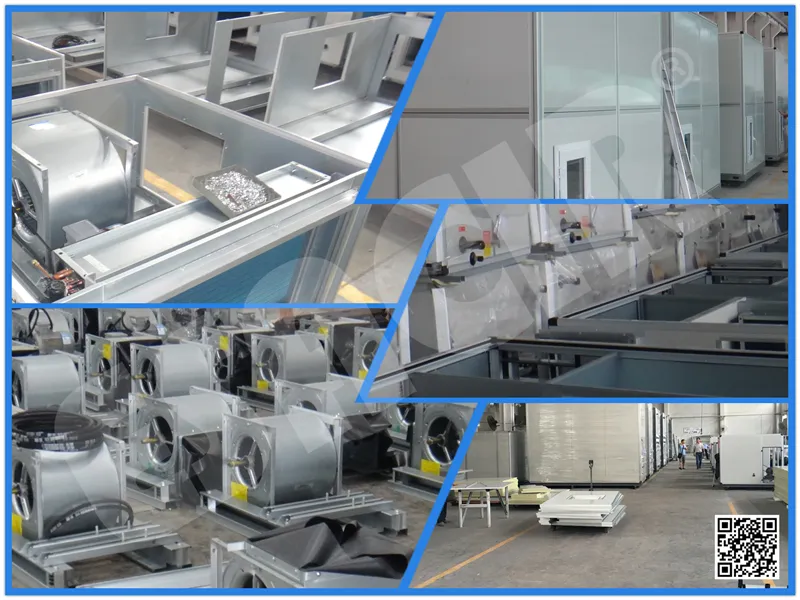

Strict Quality Control: Rigorous QA/QC systems and full-scale testing equipment.

Technical Support: Professional engineering guidance for installation and operational optimization.
