Kyn Medium Voltage Modular Design Power Distribution Unit

1 / 5

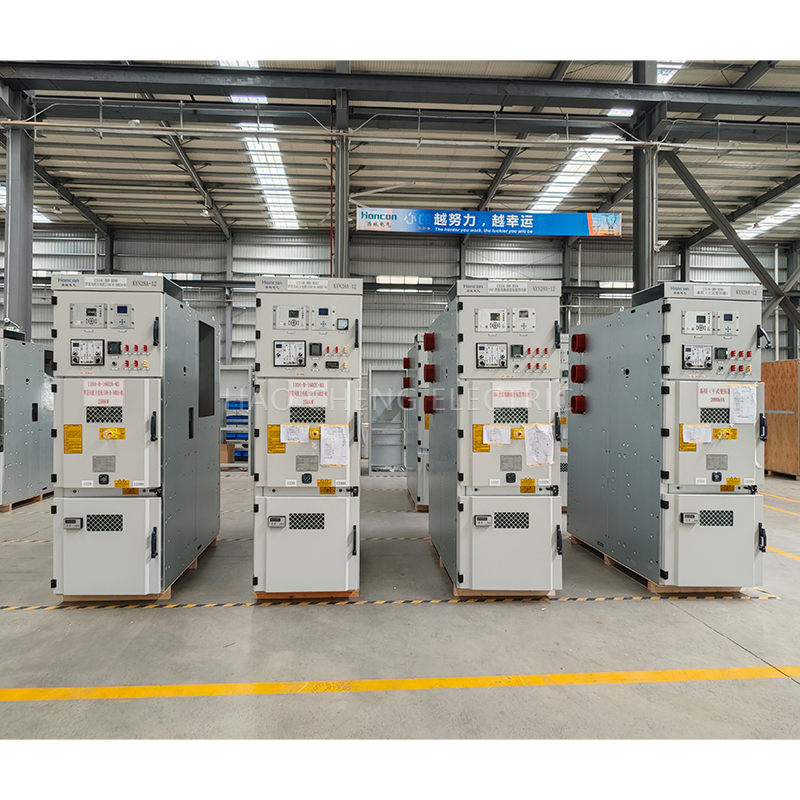

Kyn Medium Voltage Modular Design Power Distribution Unit

Customization:	Available
Certification:	ISO9001
Shell Material:	Steel Plate

Send Inquiry

Product Description

Basic Information

Model NO.

kyn28A-12

Voltage Level

Medium Voltage

Installation

Removable

Structure

Cabinet

Current

Earthquake Intensity

Magnitude 8

Rated Voltage

12~40.5kv

Weight

840-1500kg

Storage Conditions

Sheltered From Sun and Rain

Rated Frequency

50/60Hz

Phase

Three

Protection Level

Enclosure IP4X

Transport Package

Plywood Case

Specification

W: 600-1000; D: 1550-1660; H: 2300

Product Description

WITHDRAWABLE METAL-CLAD SWITCHGEAR

KYN28A-12/24 Indoor AC withdrawable metal-clad switchgear is suitable for 3.6~24kV three-phase AC 50Hz power grid. It is used to receive, distribute, control, monitor, and protect the electrical power system. It can be equipped with VD4, VS1, and other vacuum circuit breakers.

MEDIUM VOLTAGE METAL-CLAD SWITCHGEAR FEATURES

The central circuit breaker trolley helps prevent the bus from moisture and improves insulation level.

Draw-out type combination unit has good interchangeability and less maintenance.

The circuit breaker handcart can realize closed-door operation.

Each compartment is equipped with an independent pressure release channel.

The "five prevention" device is highly reliable.

Adjacent panels are separated by wall bushings to limit fault spread.

The earthing switch has fast closing ability for personal safety.

Spacious cable room for convenient user installation.

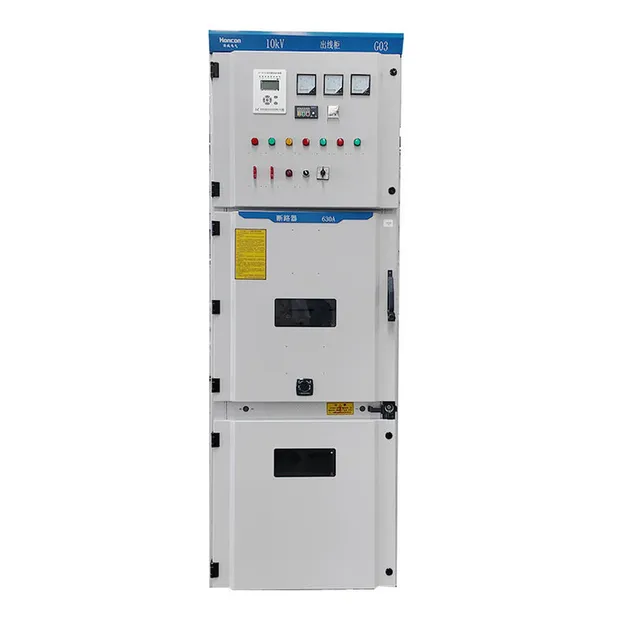

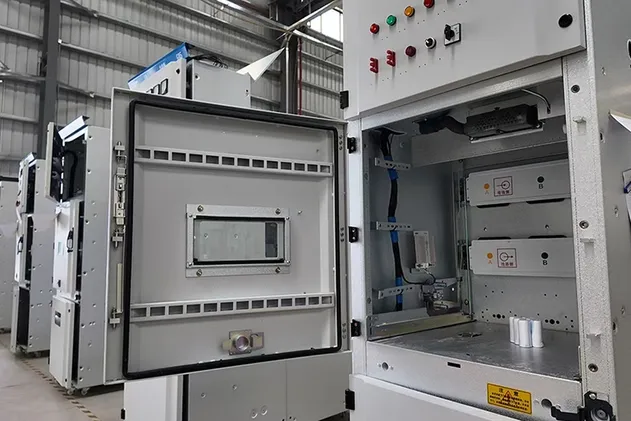

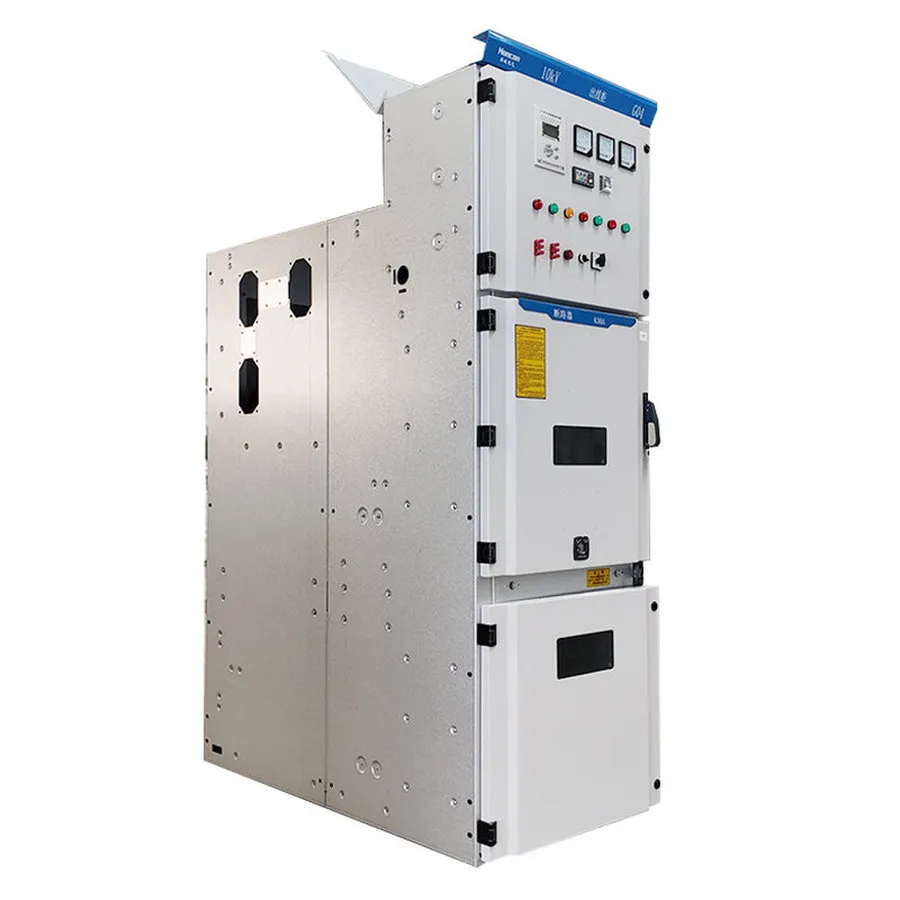

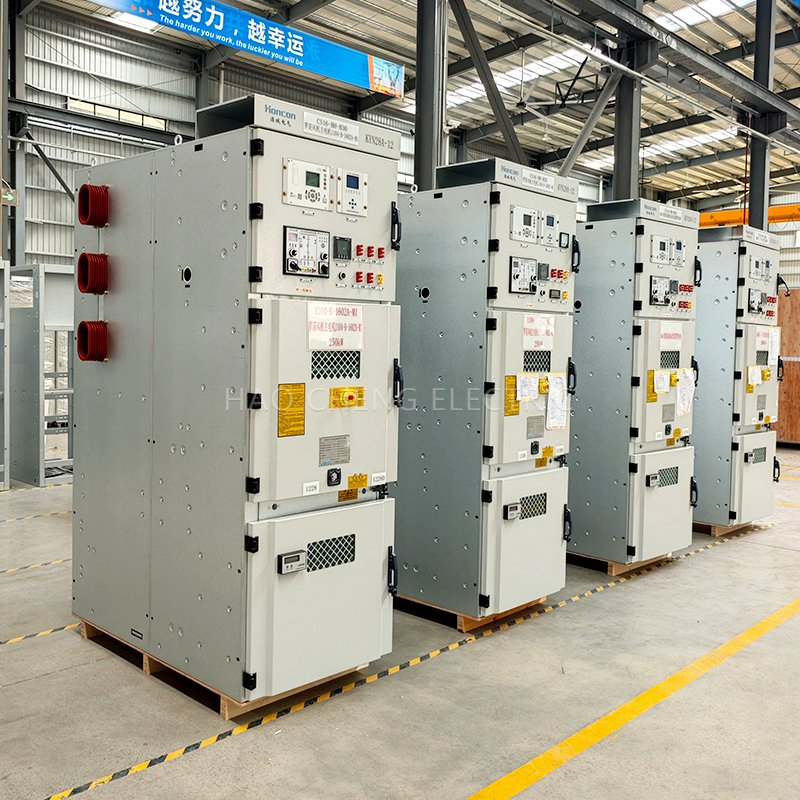

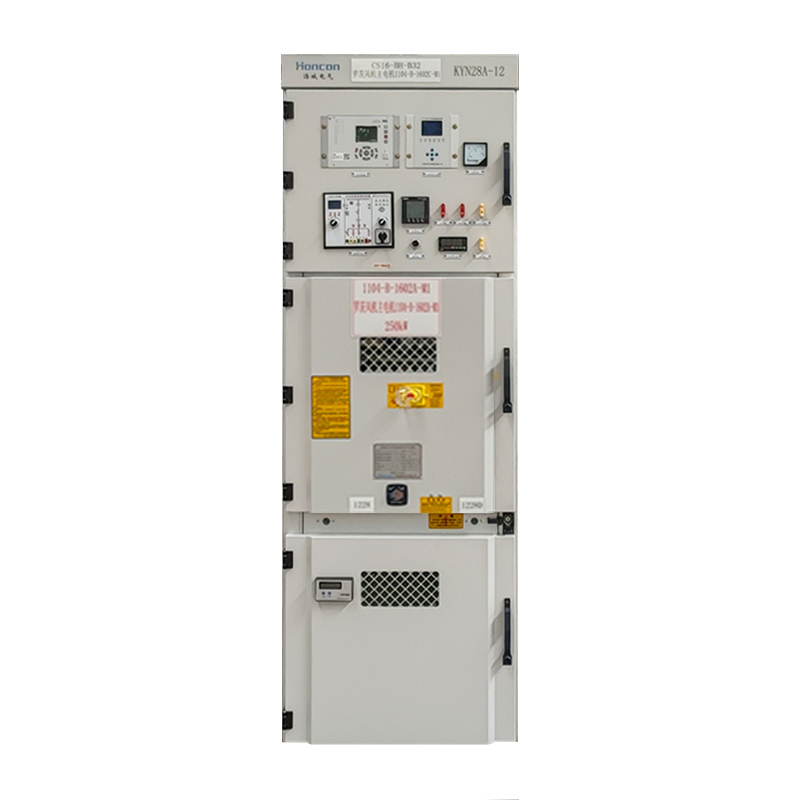

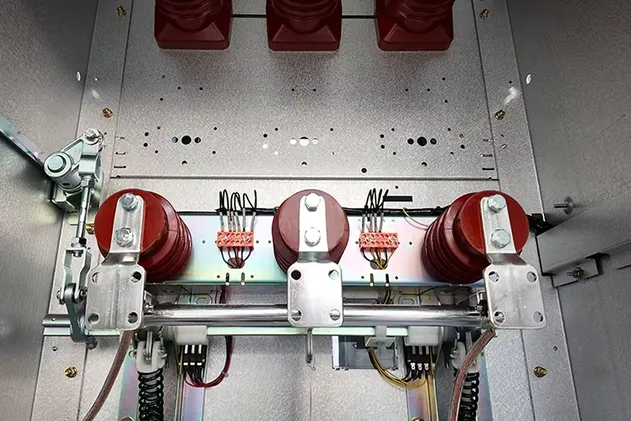

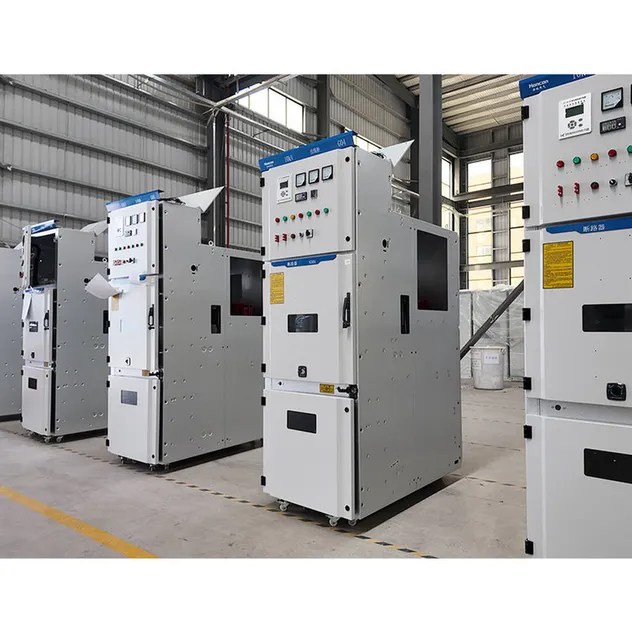

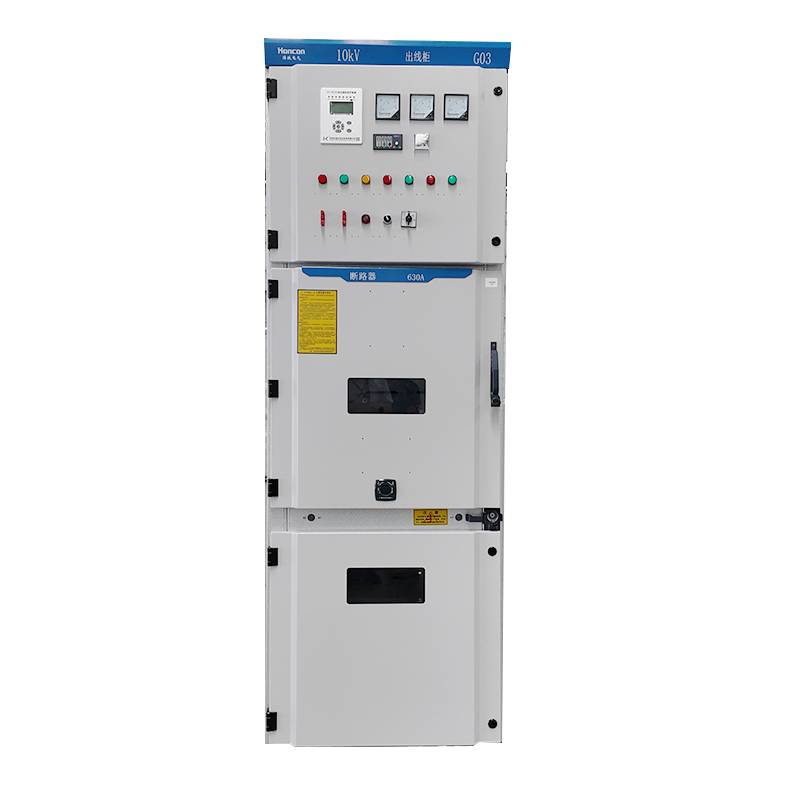

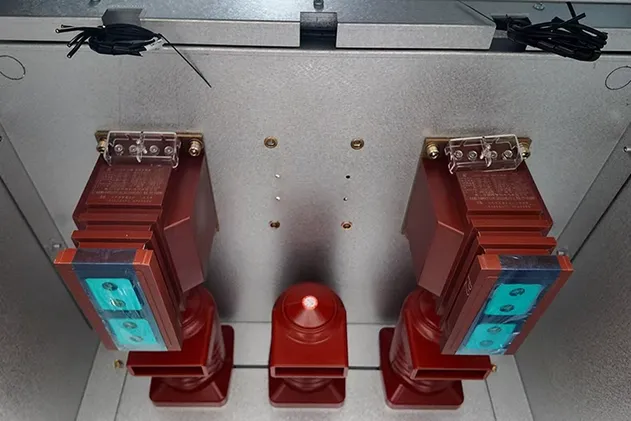

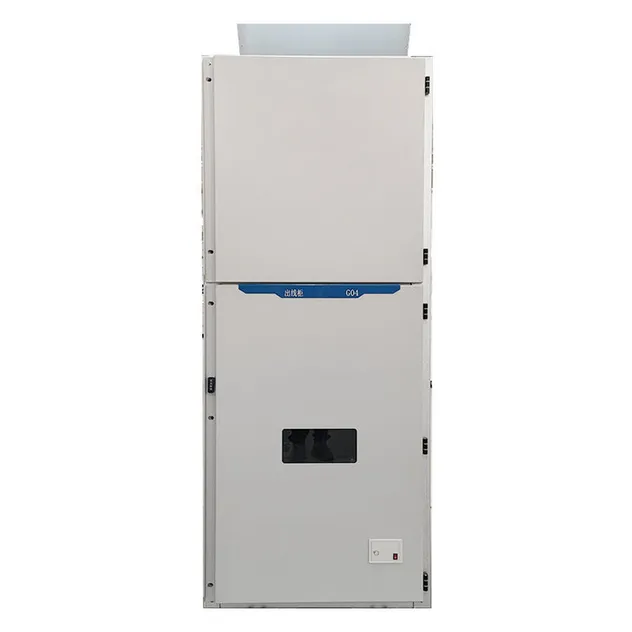

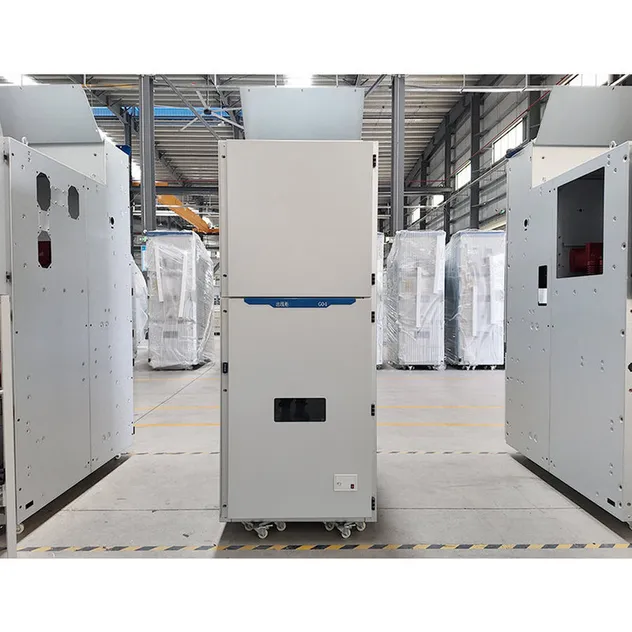

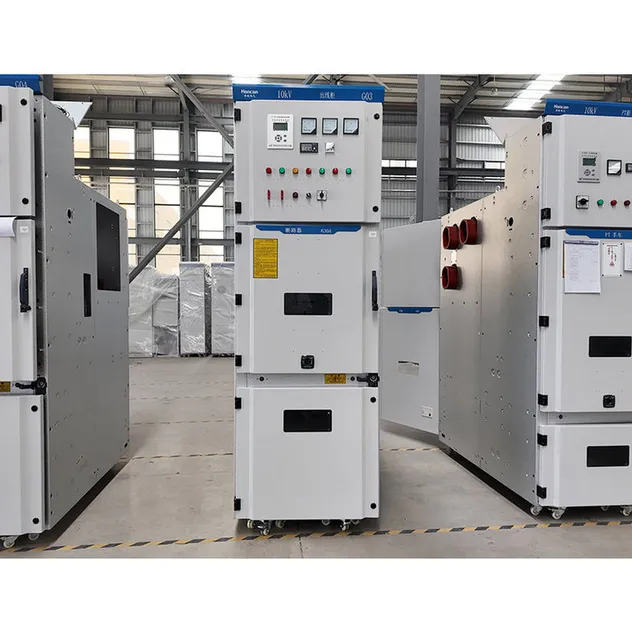

Detailed Photos

Product Parameters

Item			Unit	Parameter
Rated Voltage			kV	12	24
Rated Insulation Level	1Min Power Frequency	P To P, P To E	kV	42	65
	1Min Power Frequency	Break	kV	48	79
	Lightning Impulse	P To P, P To E	kV	75	125
	Lightning Impulse	Break	kV	85	145
Rated Frequency			Hz	50	50
Rated Current of Panel			A	630-5000	630-4000
Rated Short Time Withstand Current (4S)			kA	16-50	25-40
IP Class (Shell)			-	IP4X	IP4X
Outline Dimension	Width (mm)		mm	650, 800, 1000	1000
	Depth (mm)		mm	1550, 1660	1800
	Height (mm)		mm	2300	2400/2600

Core Applications & Uses

Power Reception & Distribution

Ideal for substations to receive and distribute grid power.

System Control

Centralized control for safe and reliable switching of power flows.

Real-Time Monitoring

Continuous monitoring of electrical parameters for system stability.

Electrical Protection

Automatic fault isolation to protect valuable industrial equipment.

Industrial Facilities

Used in manufacturing plants to manage high-power electrical loads.

FAQ

Is OEM/ODM available for this switchgear?

Yes, our products can be customized. We have skilled and experienced engineering teams who can customize products according to your technical drawings or specific requirements.

What is the Minimum Order Quantity (MOQ)?

The Minimum Order Quantity is just one set.

What is the standard delivery time?

The delivery time depends on your specific order quantity, but it normally takes approximately 15-20 days.

How is the product quality controlled?

We utilize a QC team complying with TQM to ensure quality at every stage. Products are fully assembled and carefully tested before packing. We can also provide photos and videos of the process upon request.

What is the warranty period for the unit?

The standard warranty is one year from the date of sale.
