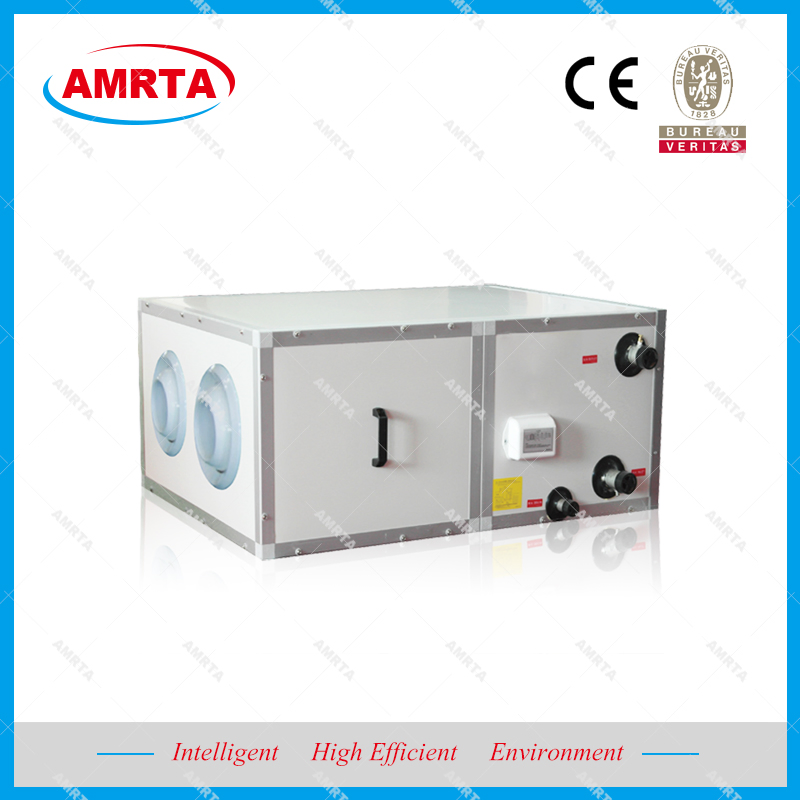

Central Air Conditioner - Combined Modular Air Handling Unit
❄️
Cooling Capacity
10kW ~ 1200kW
🌬️
Air Flow Range
1000 m³/h ~ 300000 m³/h
Technical Specifications
Operating Voltage
380-415, 440, 460, 50/60Hz
Application Fields
Supermarket, Hospital, Pharmaceutical
Filter Type
Pre, Medium and HEPA (Optional)
Mounting
Vertical / Horizontal / Ceiling
Heat Recovery
Wheel or Plate (Optional)
Usage
Commercial / Industrial
Product Features
The unit panel utilizes high-strength pre-painted steel as its external skin, featuring exceptional antirust properties and a protective plastic layer. The internal material consists of 25mm, 30mm, or 50mm thickness polyurethane foam panels.
A rubber rib steel structure isolates the outer metal, ensuring panel strength while preventing thermal bridges and providing low air leakage. The arc-corner structure provides an aesthetic outlook and easy maintenance.
- Modular design for flexible assembly
- Anti-thermal bridge frame construction
- High-strength galvanized steel panels
- Multiple installation orientations
- Customizable heating and humidification
- Optional HEPA filtration for cleanrooms

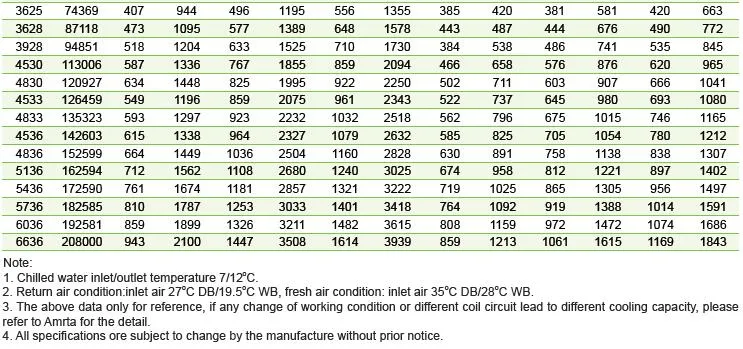

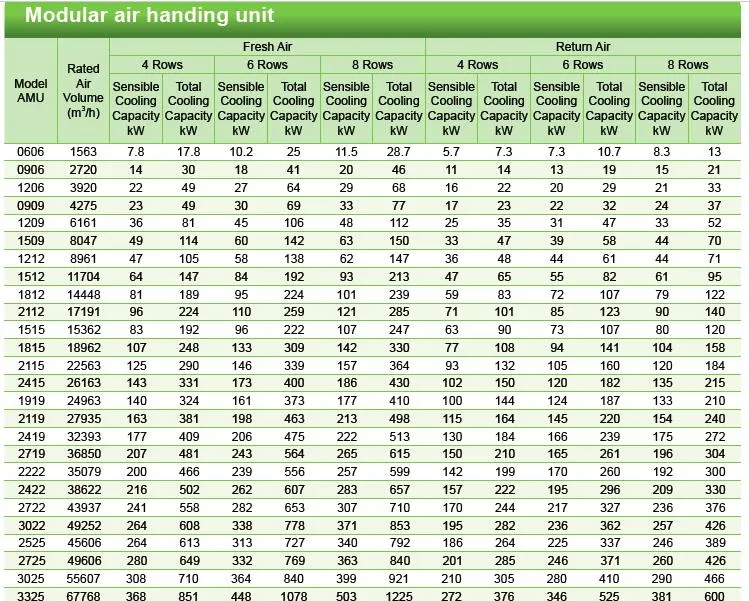

Technical Performance Data

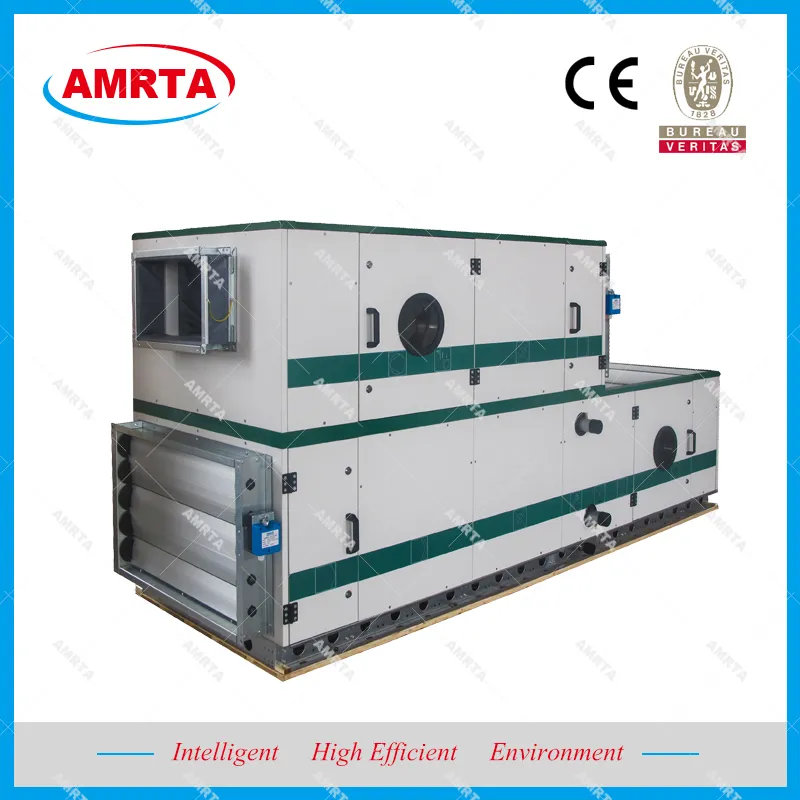

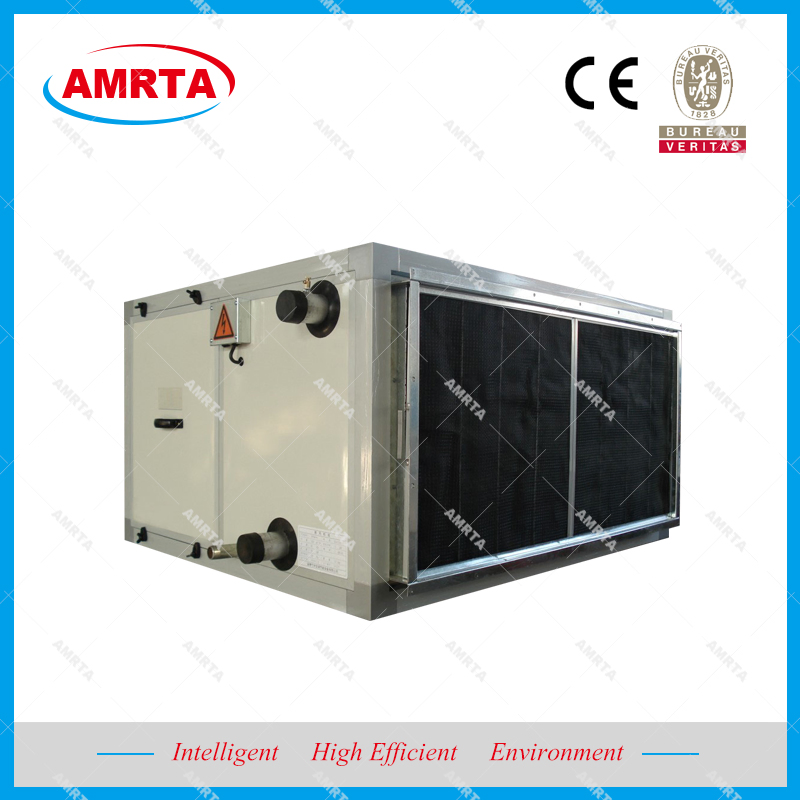

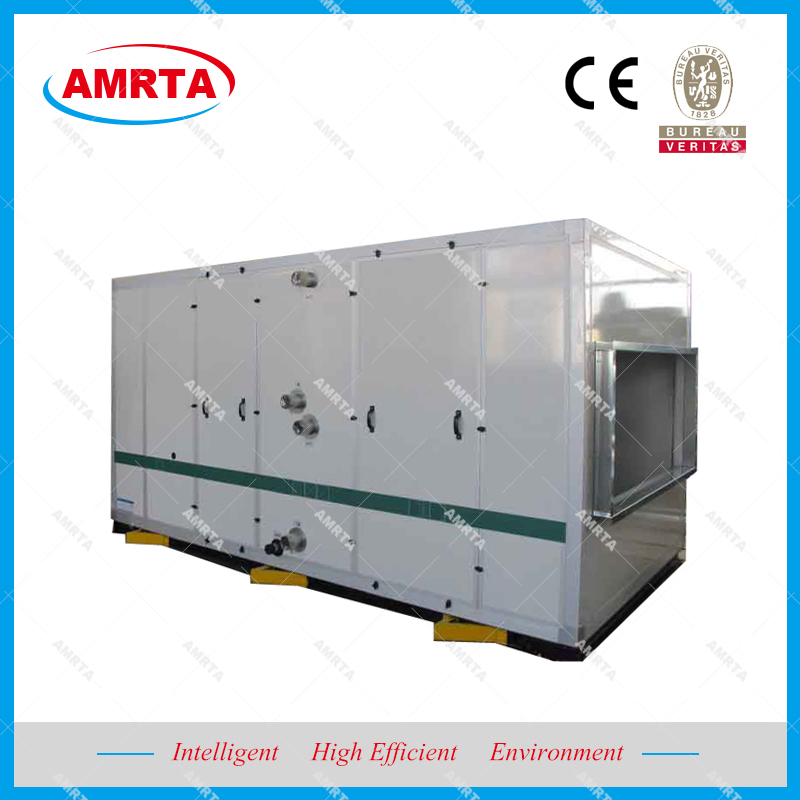

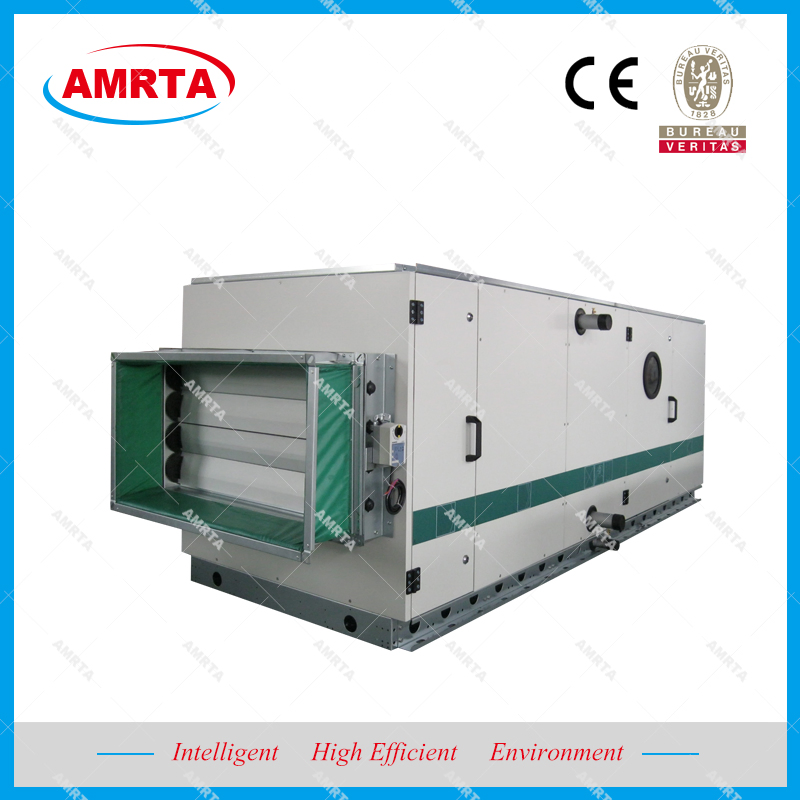

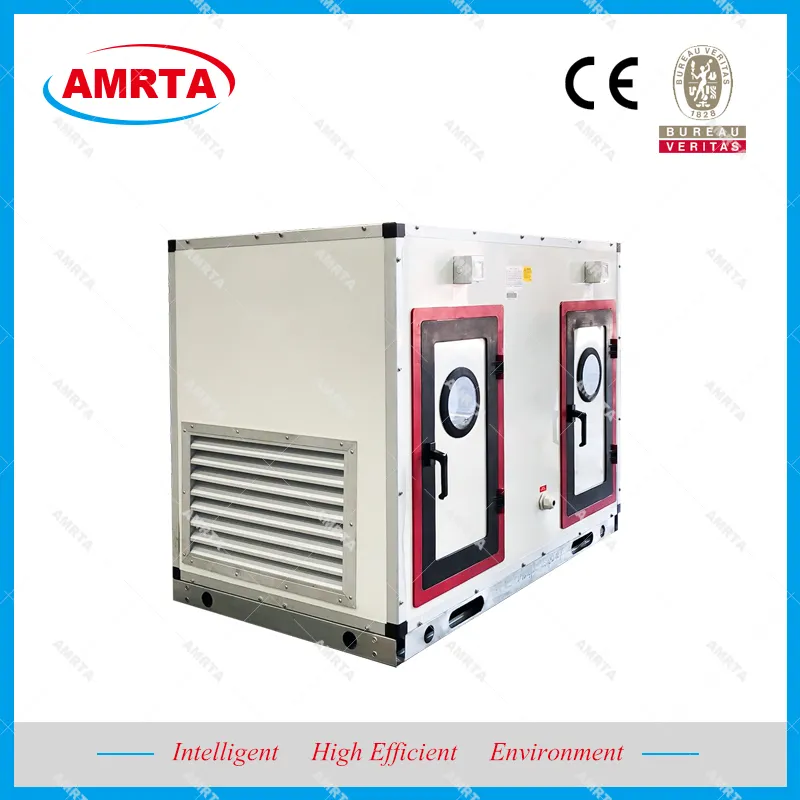

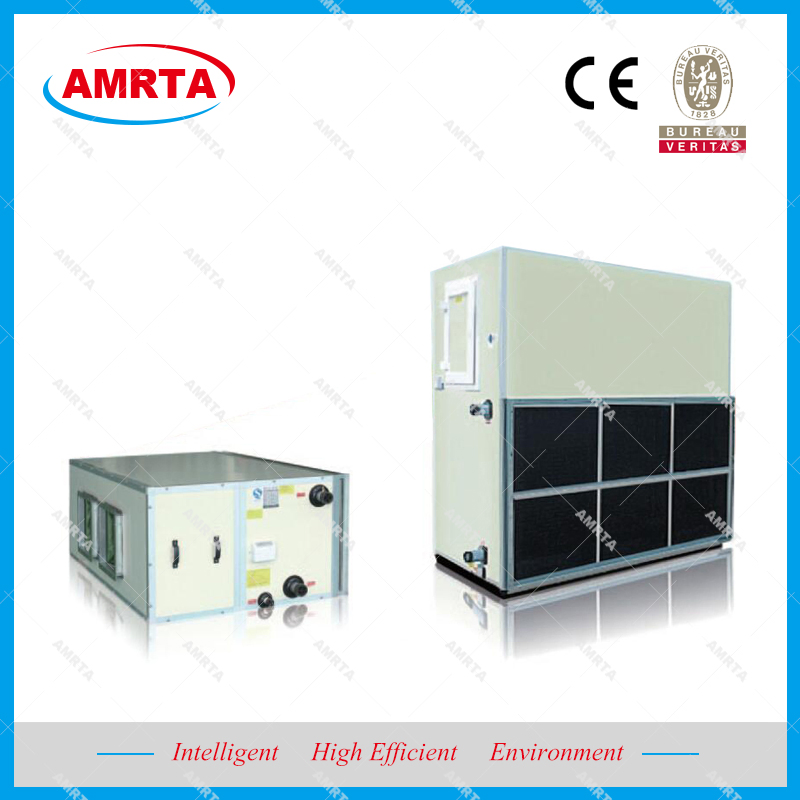

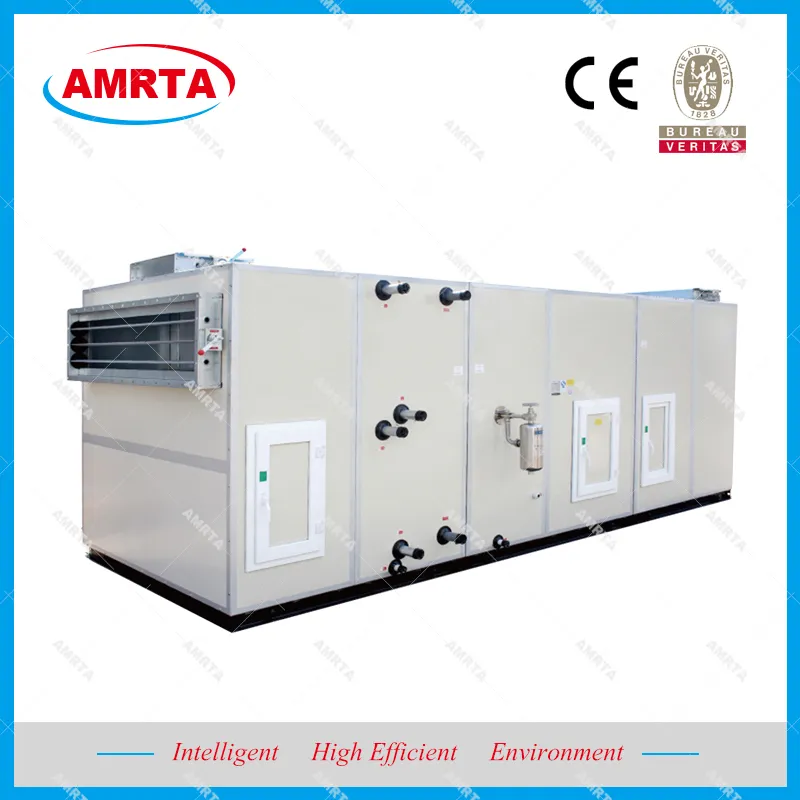

Unit Gallery

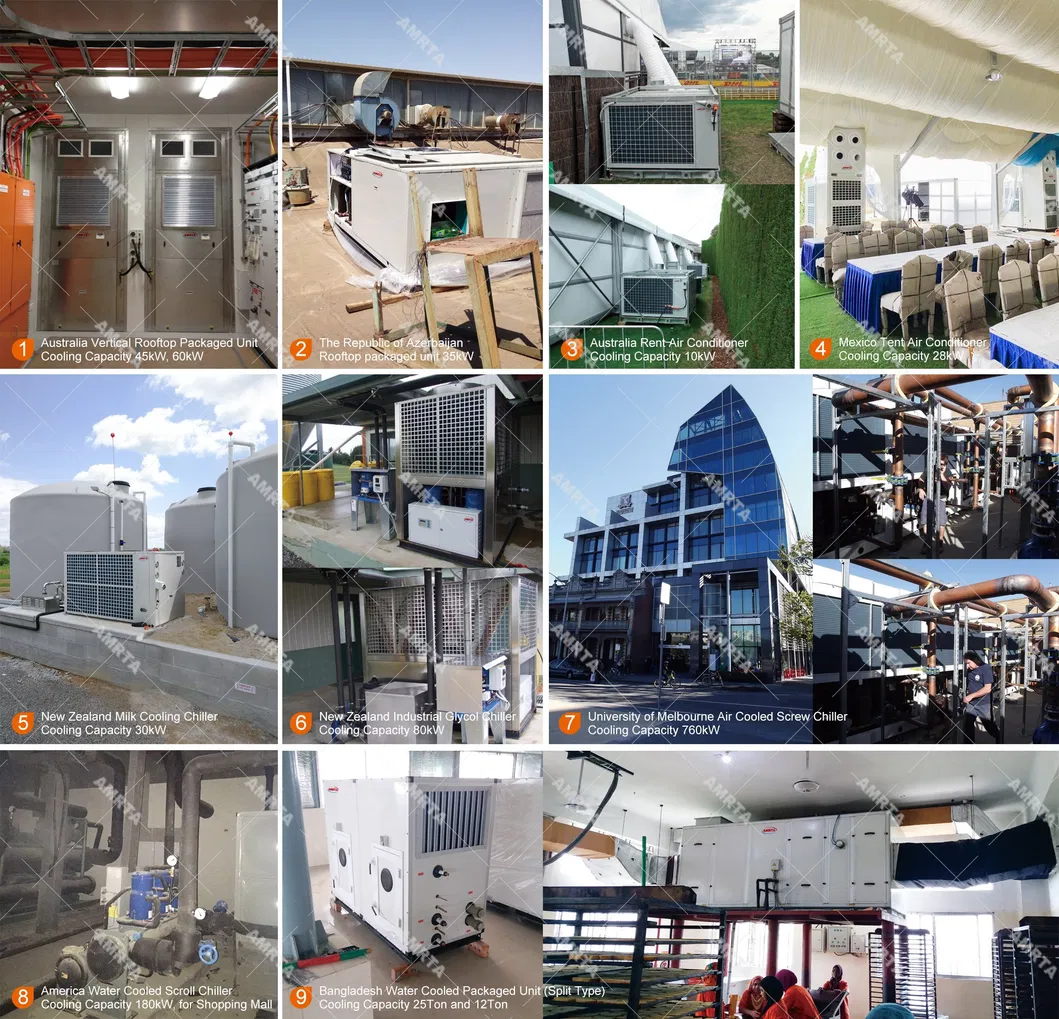

Project Cases & Product Range
Frequently Asked Questions
What is the typical lifespan of these Air Handling Units?
The units are designed for industrial-grade durability with an expected operational lifetime of 15 to 20 years under proper maintenance.
What filter configurations are available for cleanroom applications?
We offer multi-stage filtration options including Pre-filters, Medium filters, and HEPA filters to meet pharmaceutical and hospital standards.
How does the unit prevent thermal bridging?
The panels use rubber rib steel isolation and polyurethane foam (up to 50mm thickness) to ensure there is no direct metal-to-metal contact between the interior and exterior.
Can the unit be customized for specific installation spaces?
Yes, we provide horizontal, vertical, and ceiling-mounted types to accommodate various building constraints and site requirements.
Are heat recovery options supported?
Yes, both Wheel Heat Recovery and Plate Heat Recovery sections can be optionally integrated into the modular design for energy efficiency.
What industries are these AHUs best suited for?
They are widely used in commercial buildings, hospitals, pharmaceutical factories, garment workshops, and large warehouses.
