Smart Microcomputer Busbar Insulation Monitoring Solution for Efficiency

1 / 5

Smart Microcomputer Busbar Insulation Monitoring Solution for Efficiency

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info

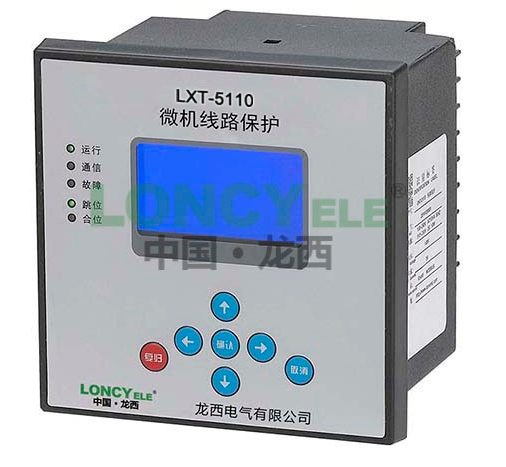

Model NO.	LXT-5000	Voltage Level	AC/DC 110V-220V
Installation	Panel Mount	Structure	Integrated
Current	5A/1A	Specification	Customized
HS Code	8537209000	Transport Package	Carton with Foam

⚡ Product Description

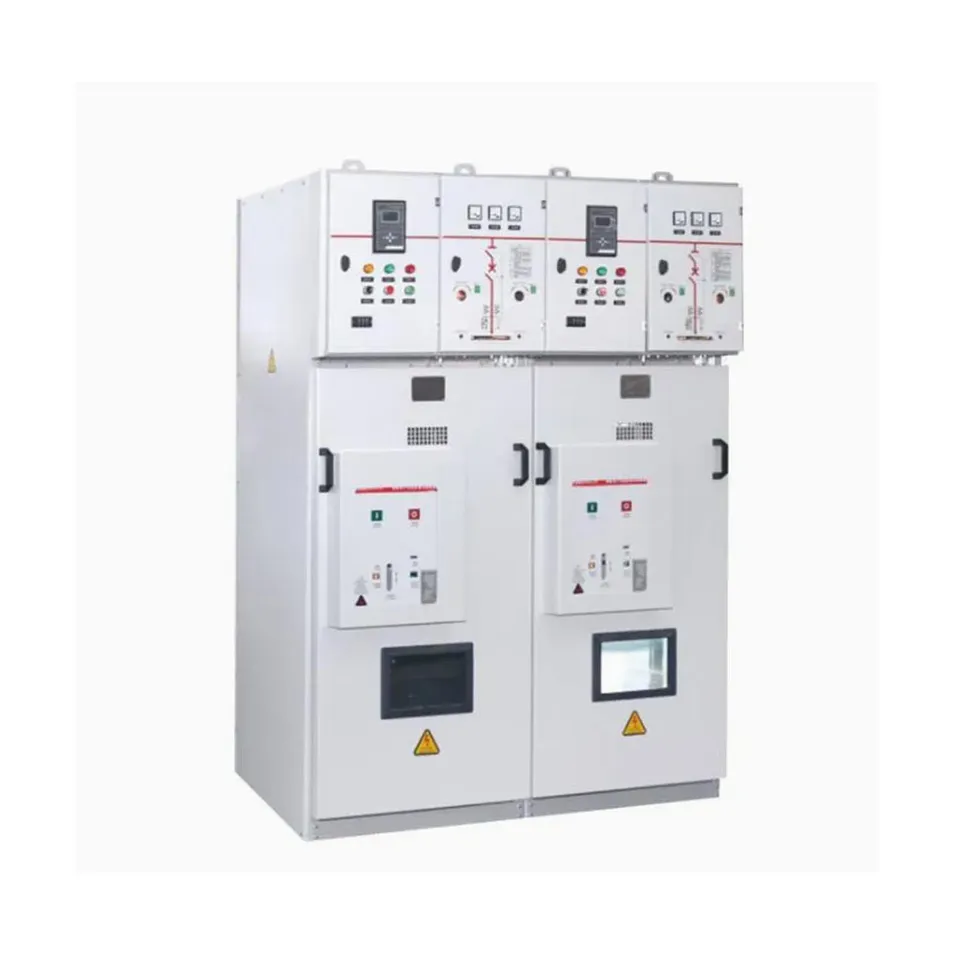

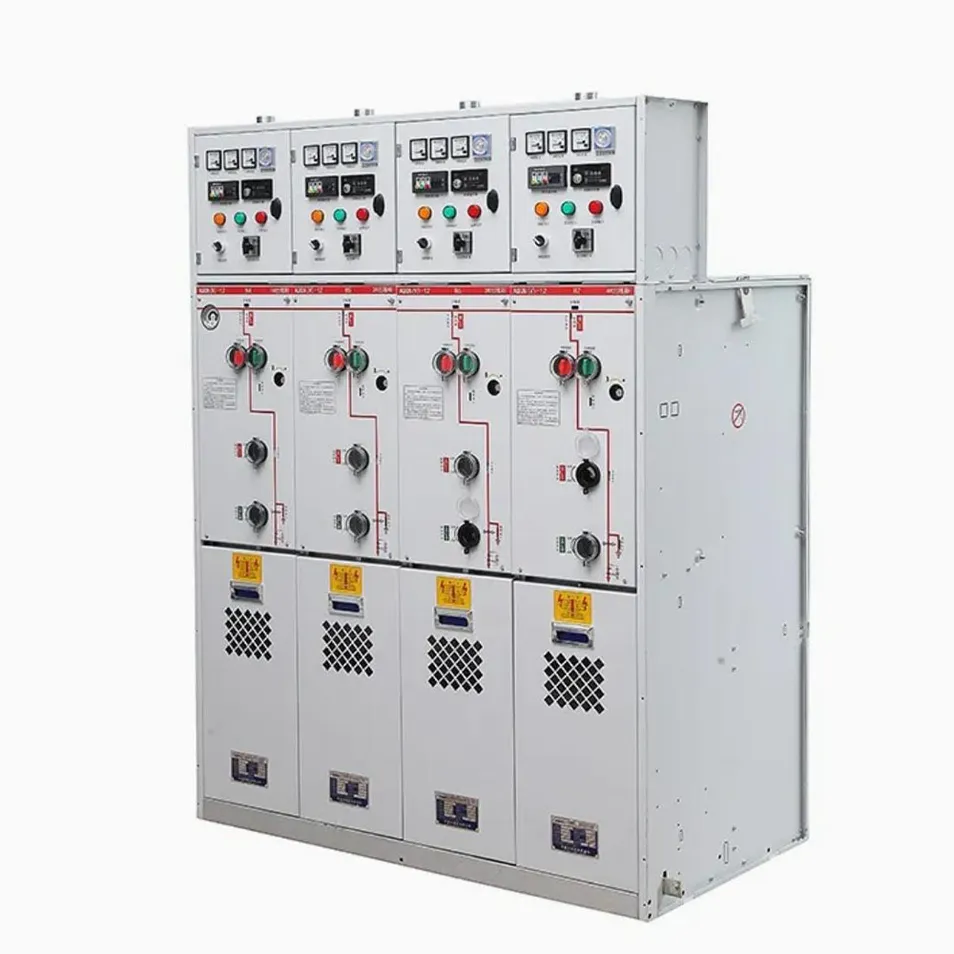

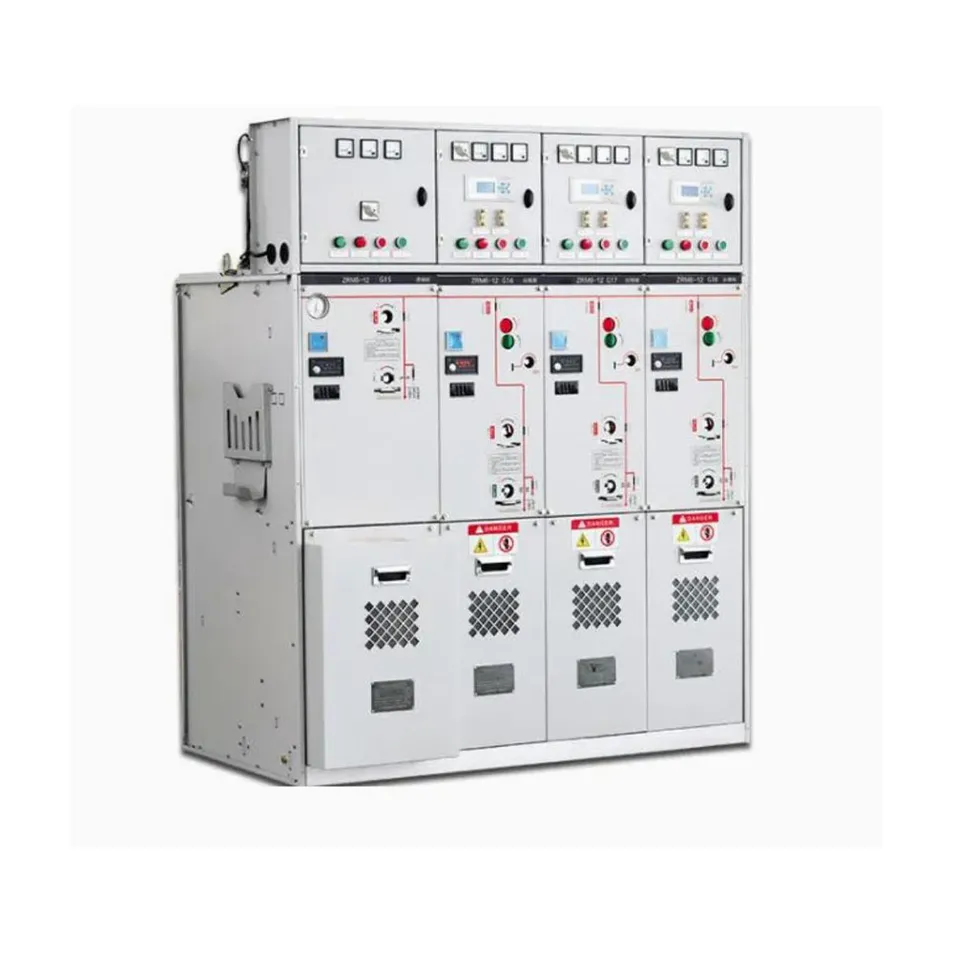

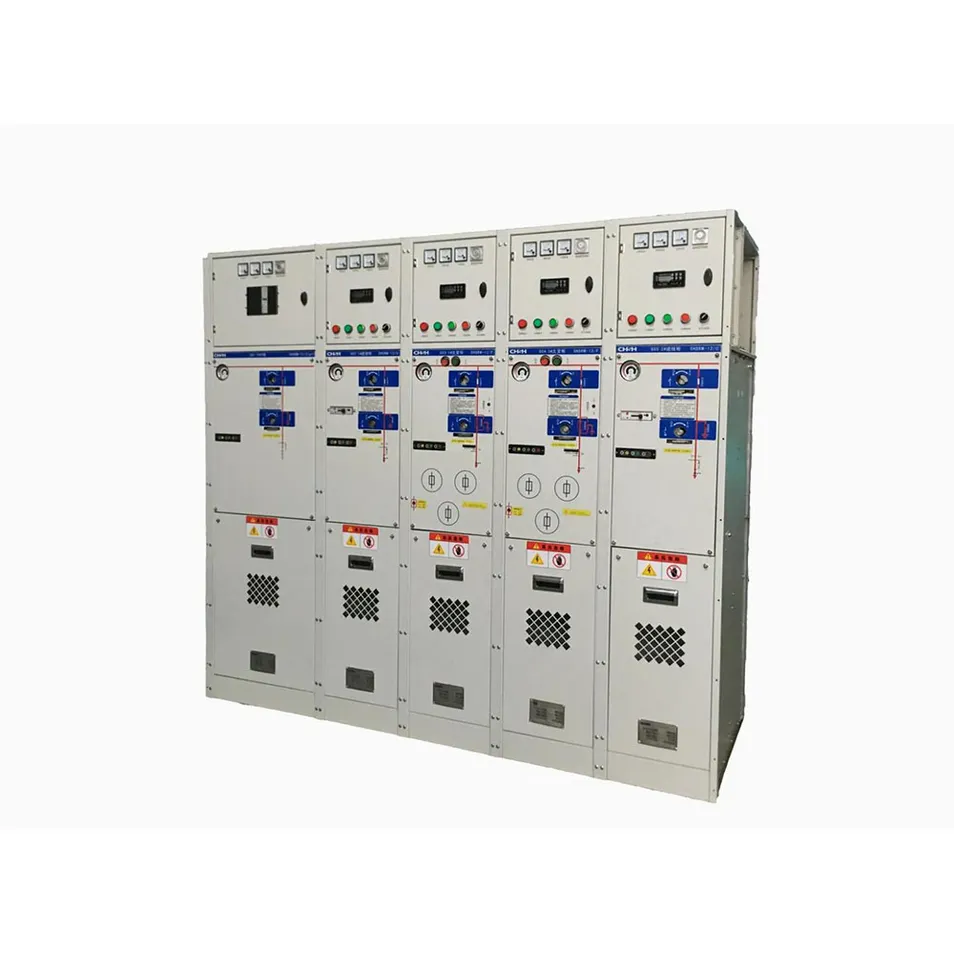

Scope of Application - XGN15-12 Switchgear

Our XGN15-12 indoor AC high-voltage sulfur hexafluoride ring main switchgear represents a new generation of air-insulated, metal-enclosed switchgear. Through continuous refinement, its outstanding performance and flexible assembly capabilities meet the evolving demands of the market.

The XGN15-12 switchgear provides forward-looking technical solutions for diverse application scenarios. The equipment is safe, convenient, and features a compact, space-saving design. This equipment is suitable for 12kV ring network power supply, dual-radial power supply systems, and terminal power supply applications, serving as a control and protection device for electrical energy.

Key Features:

Suitable for distribution automation systems.
Advanced sensor technology and protective relays.
Reliable performance in hospitals, airports, and demanding environments.
Complies with EC420-1990 and GB3906 standards.

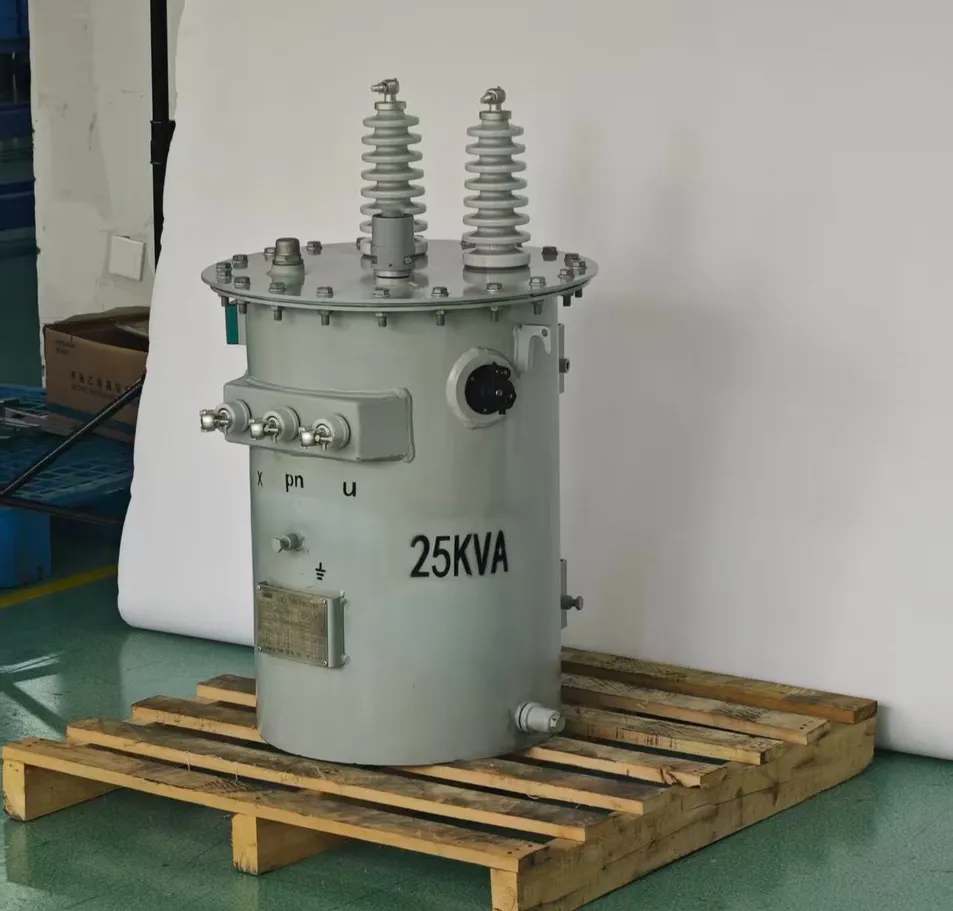

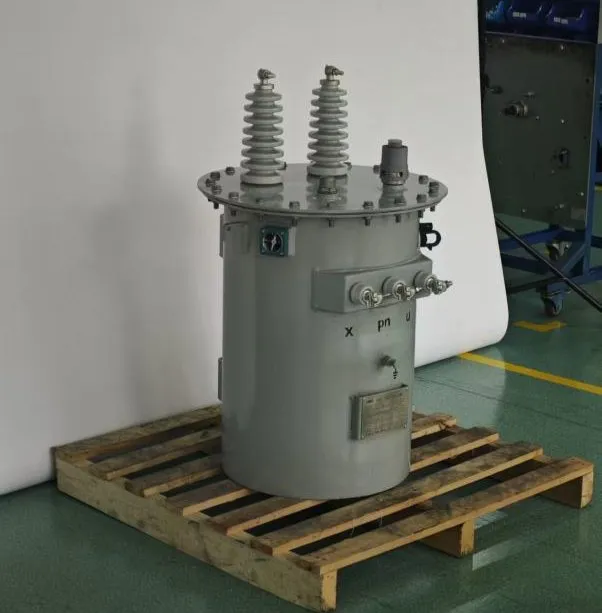

25kVA Single-Phase Oil-Immersed Transformer

This 25kVA single-phase oil-immersed pole-mounted transformer is designed for outdoor distributed load applications. Featuring a fully sealed structure, it offers convenient installation, reliable operation, and maintenance-free characteristics.

Applicable Scenarios:

Dispersed residential areas in rural and suburban locations.
Urban road lighting and highway/railway power supply.
Small load points like communication base stations and surveillance.
Remote industrial sites (oil fields, mining areas).

Technical Specifications - Transformer

Parameter Item	Specifications
Rated Capacity	25kVA
Rated Voltage Ratio	10kV / 0.22kV (Customizable)
Impedance Voltage	≤4%
No-load Loss	≤120W
Cooling Method	ONAN (Oil-immersed self-cooling)
Protection Rating	IP54

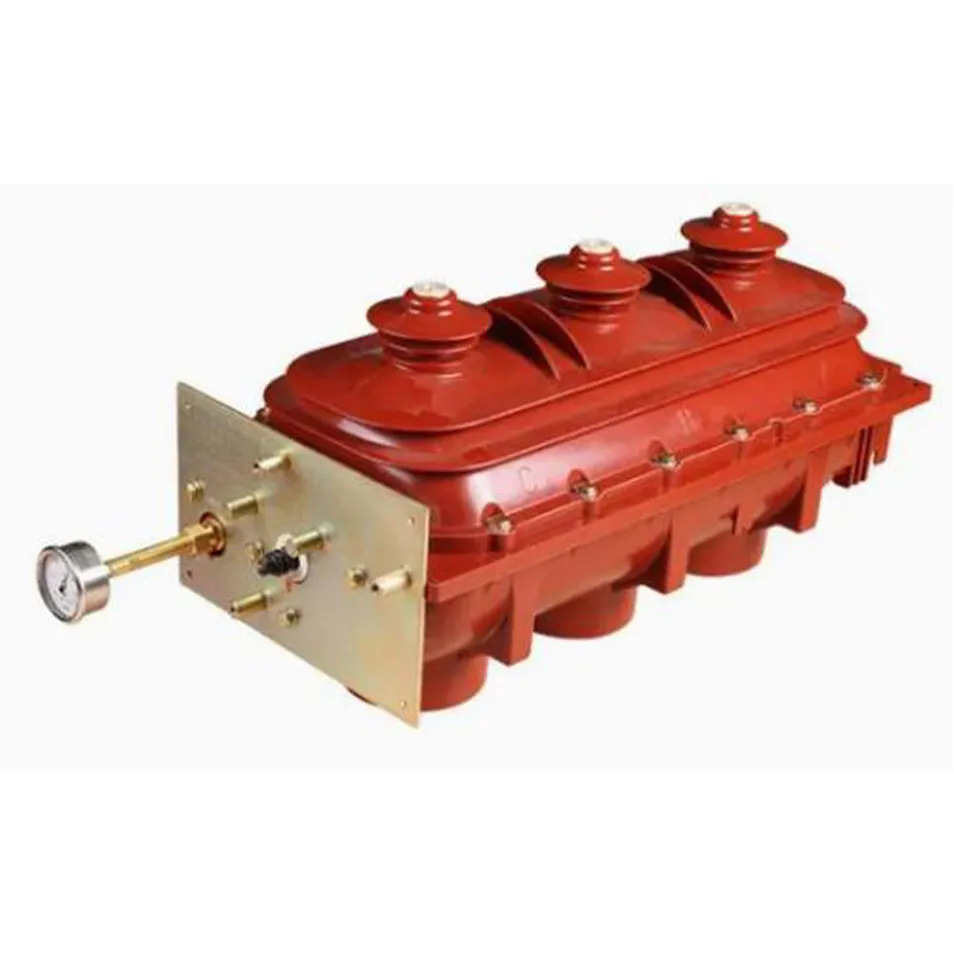

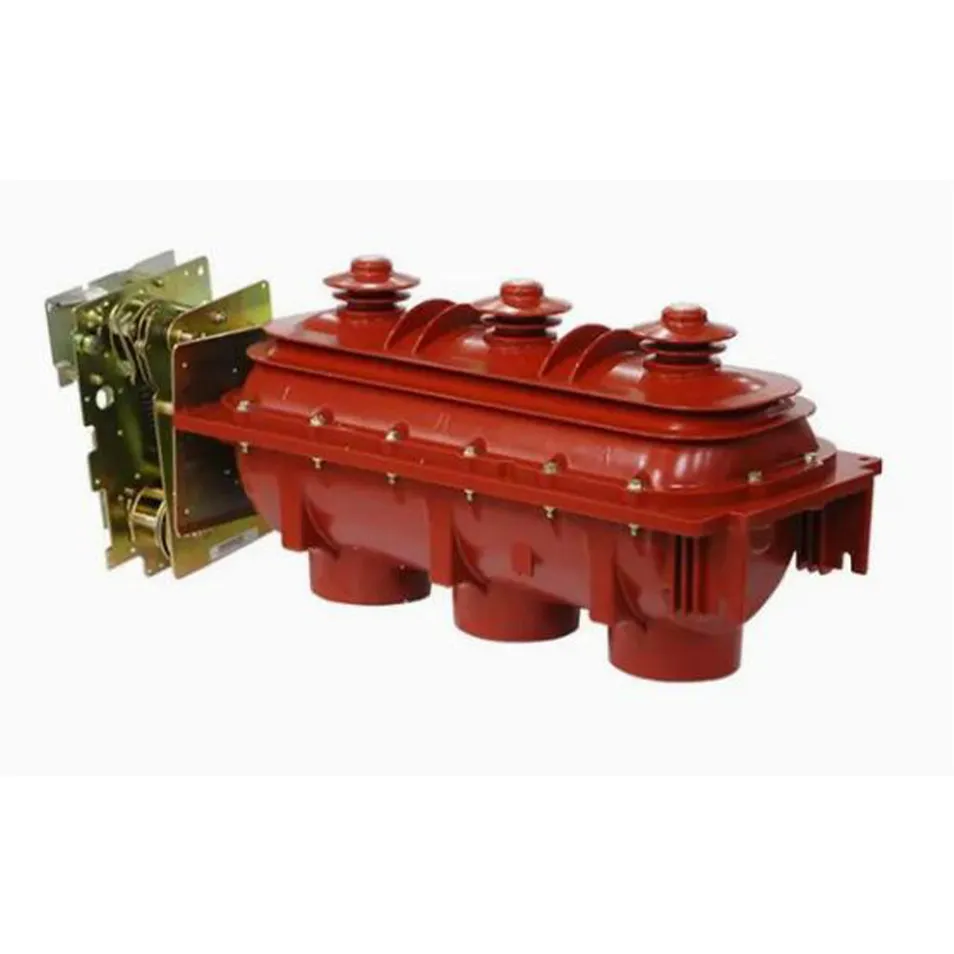

FLRN36-12D SF6 High-Voltage Load Switch

The FLRN36-12D sulfur hexafluoride (SF6) load switch is rated at 12kV. It uses SF6 gas for arc-quenching and insulation. The switch includes three positions: closed, open, and grounded. It features an epoxy resin insulating enclosure cast using the APGI process.

Ambient Temperature: -40°C to +40°C.
Altitude: Standard up to 2000m (Customizable up to 3000m).
Seismic Resistance: 8 degrees.
Annual leakage rate: ≤0.1%.

Name	Unit	FLN36-12D/T630-20
Rated Voltage	kV	12
Rated Current	A	630
Mechanical Life	Cycles	5000/2000
SF6 Gas Pressure	bar	0.4

🏭 Main Products

🏢 Solutions & Services

Core Business Areas:

New Energy Systems: Integrated photovoltaic energy storage and distributed power generation solutions.
Power Equipment: High and low voltage switchgear, intelligent circuit breakers, and transformers.
Intelligent Control: Industrial automation systems and customized control enclosures.

📜 Certifications

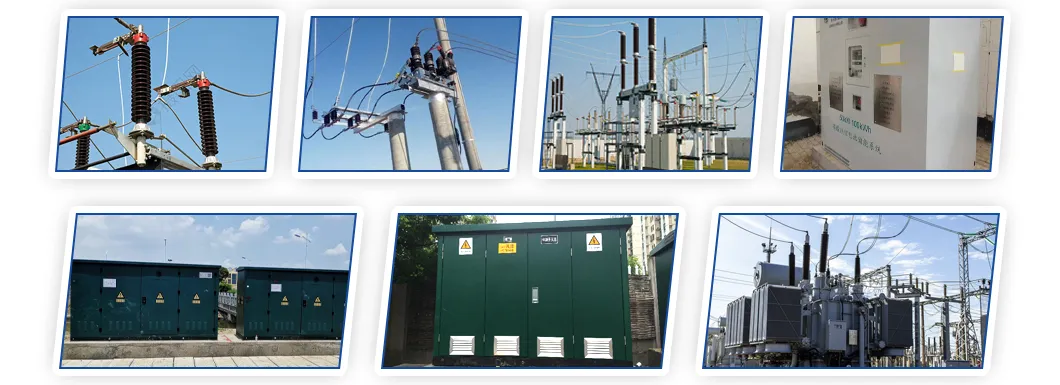

💡 Application Scenarios

📦 Packaging & Shipping

Frequently Asked Questions

1. What are the primary applications for the XGN15-12 switchgear?

It is ideal for 12kV ring network power supply, dual-radial systems, and terminal power applications in hospitals, airports, and container substations.

2. Is the 25kVA transformer suitable for harsh weather conditions?

Yes, it features a fully sealed structure with corrosion-resistant coating and operates reliably in extreme temperatures ranging from -40°C to +40°C.

3. What standards do the high-voltage load switches comply with?

The load switches comply with international and domestic standards such as IEC 60265, IEC 62271, GB 3804, and GB 16926.

4. Can the equipment be used at high altitudes?

Standard equipment is rated for altitudes up to 2000 meters. However, we provide customized designs for operation at altitudes up to 3000 meters upon request.

5. What is the maintenance requirement for the oil-immersed transformers?

These transformers use a corrugated oil tank with a fully sealed structure, which isolates the oil from external air, making them virtually maintenance-free.

6. What protection measures are included in the SF6 load switches?

The lower insulating cover includes explosion-proof measures that vent overpressurized gas safely to the rear, ensuring personnel safety during accidental failure.
