Basic Specifications
After-sales
Full Support Services
Warranty
3 Years Guarantee
Capacity
1000 Units / Month
Package
Standard Nude Package

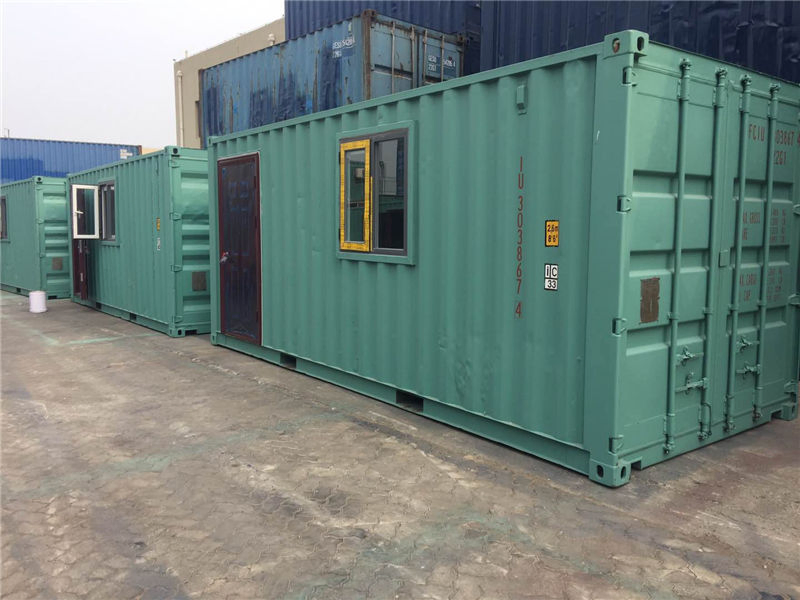

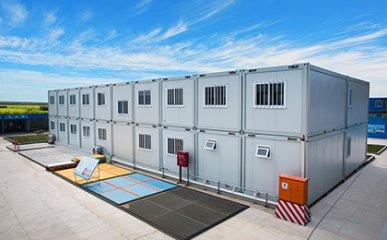

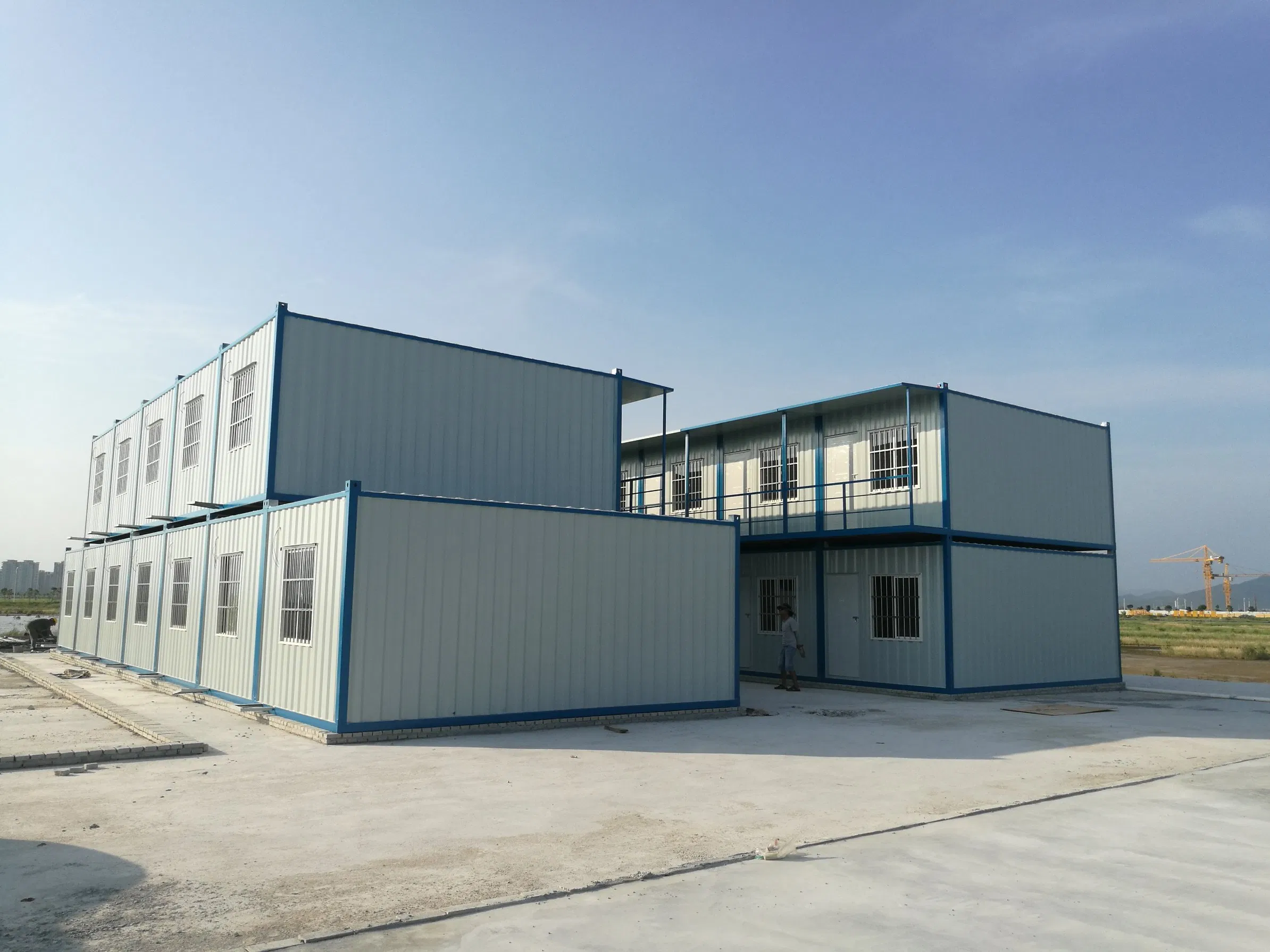

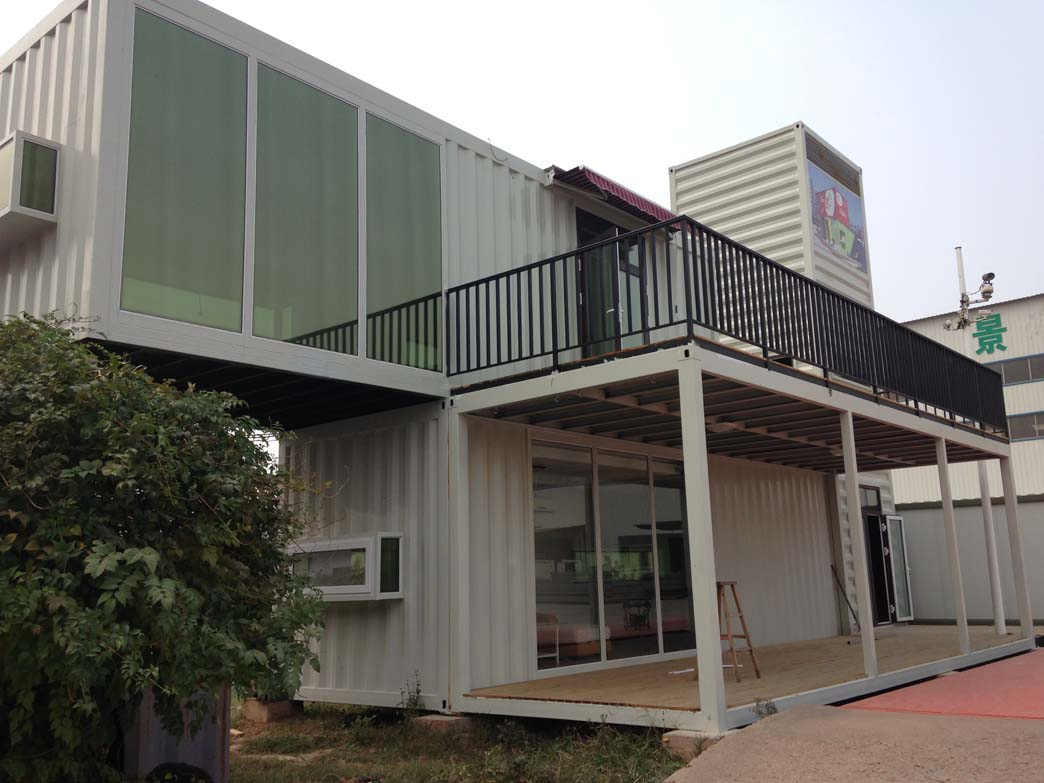

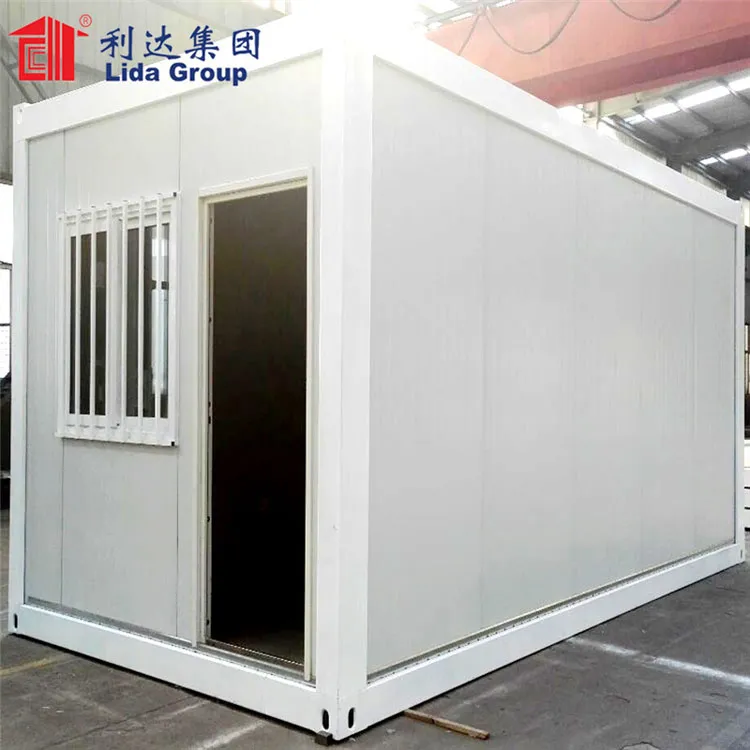

Prefab Modular Container Building
General Technical Description for Modular Industrial & Commercial Steel Structures

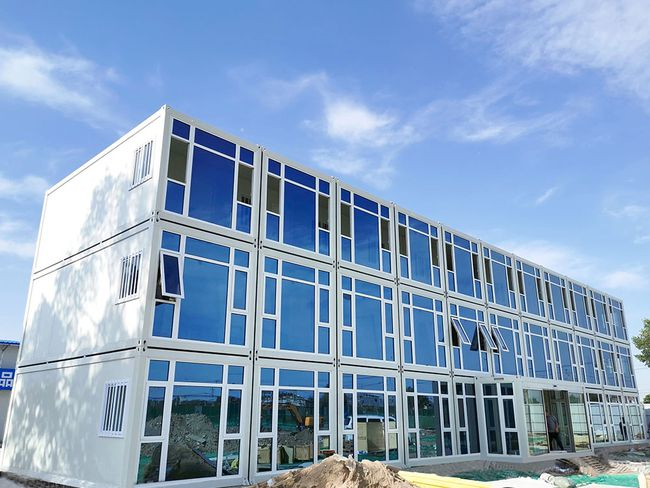

This versatile structure is ideal for hospitals, hotels, apartments, and workshop buildings, providing a sustainable and efficient construction solution.
✓Easy to assemble and disassemble multiple times without damage.
✓Flexible lifting, fixing, and free combinations.
✓Excellent heatproof and waterproof performance.
✓Cost-saving transportation (4 units fit in one standard container).
✓Long service life of 15 - 20 years.
Technical Parameters
| Size Options | GP20, GP40 and HP40 shipping container sizes |
| Wind Resistance | Grade 12 |
| Wall Permitted Loading | 0.6KN/ m2 |
| Ceiling Live Loading | 0.5 KN/m2 |
| Thermal Conductivity (Wall) | K=0.442W/mk |
| Thermal Conductivity (Ceiling) | K=0.55W/ m2K |
Structural Materials

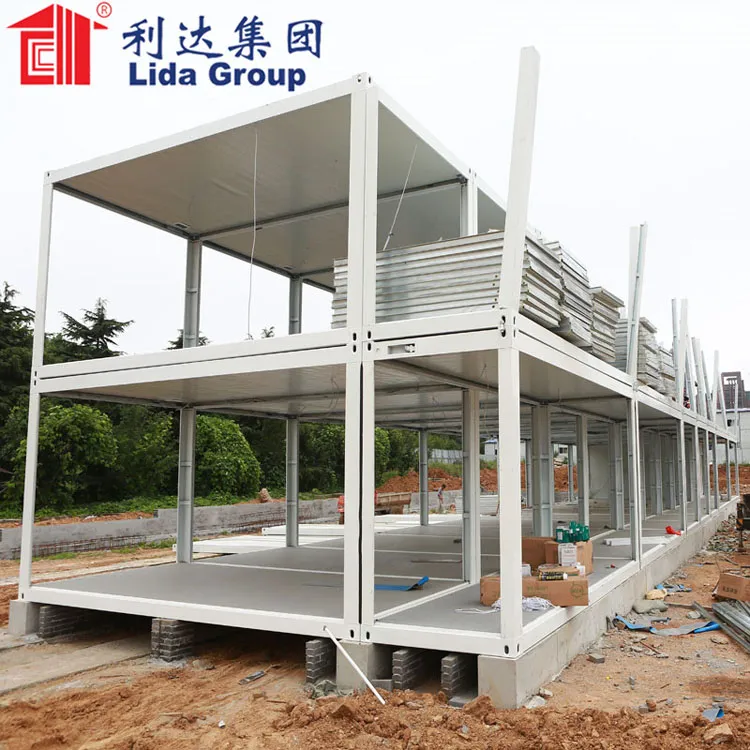

Steel Framework
Material Q345, thickness: 3.5mm for beams and columns. Surface finished with epoxy painting (two bottom, two surface).
Floor System
Galvanized steel sheet (0.5mm), 75mm rock wool insulation, 18mm bamboo plywood, and 2.0mm PVC leather.
Ceiling & Wall
Roof: 1.2mm steel plate + 75mm rockwool + 12mm PVC decoration board. Walls: 75mm rockwool sandwich panel (120Kg/m3).
Electrical Fittings
- ● 2.5mm² wire for lighting; 4mm² for AC units.
- ● Main input industrial socket (32A).
- ● 16A universal five-hole sockets (3 pcs).
- ● Double tube fluorescent lamps (2 pcs).
- ● Distribution box with breakers and earth leakage protection.
Professional Support
Design: Full site camp solution design according to requirements.
Procurement: Quality-controlled material manufacturing under ISO standards.
Management: Site installation supervision and engineer training services.

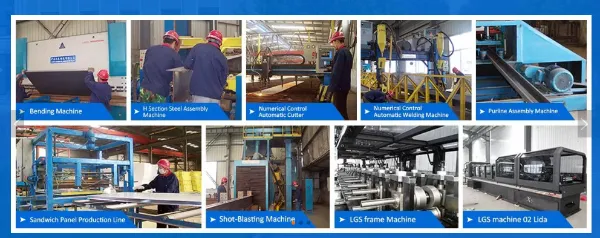

You are warmly welcomed to visit our production facilities.
Frequently Asked Questions
1. What is the expected service life of the container house?
The service life of our modular container houses can reach up to 15 to 20 years with proper maintenance.
2. Can these buildings withstand extreme weather conditions?
Yes, the structures are designed with Grade 12 wind resistance and feature heatproof and waterproof insulation.
3. How are the units transported to the site?
They are designed for cost-saving transportation; every 4 standard container house units can be loaded into one standard shipping container.
4. What materials are used for the main framework?
We use high-quality Q345 steel with a thickness of 3.5mm for the top beam, base beam, and columns, finished with epoxy painting.
5. Do you provide installation assistance?
Yes, we provide site management and installation supervision services, including sending engineers to train your local team.
6. Are the interior electrical fittings included?
Yes, units come with standard electrical wiring, sockets, lighting, and a distribution box with protective devices.
