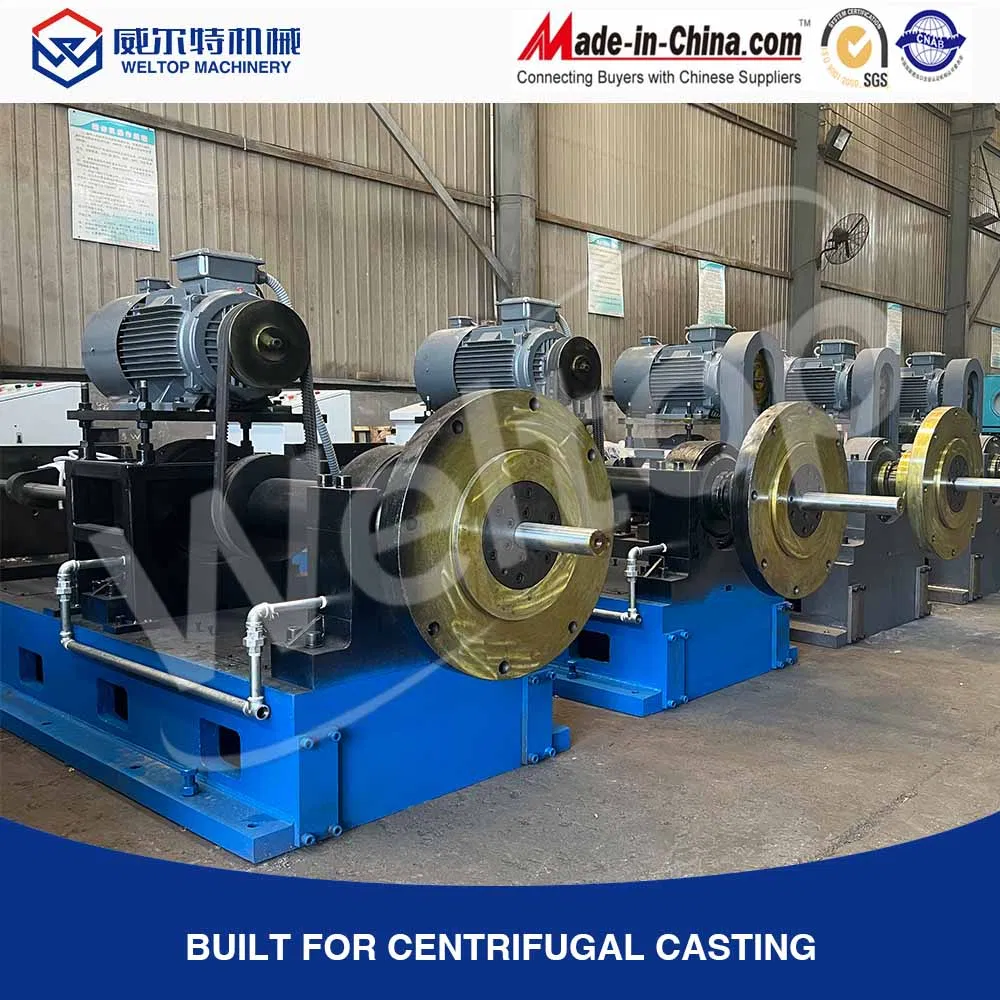

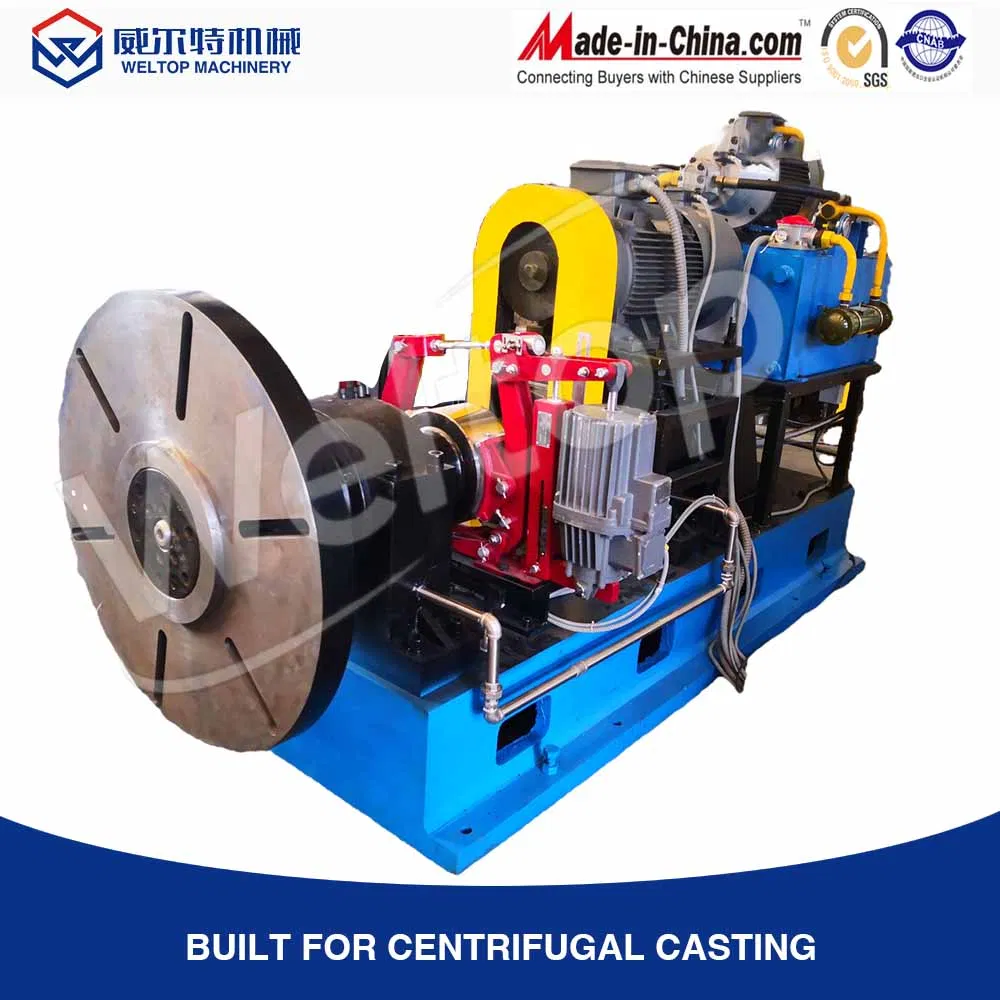

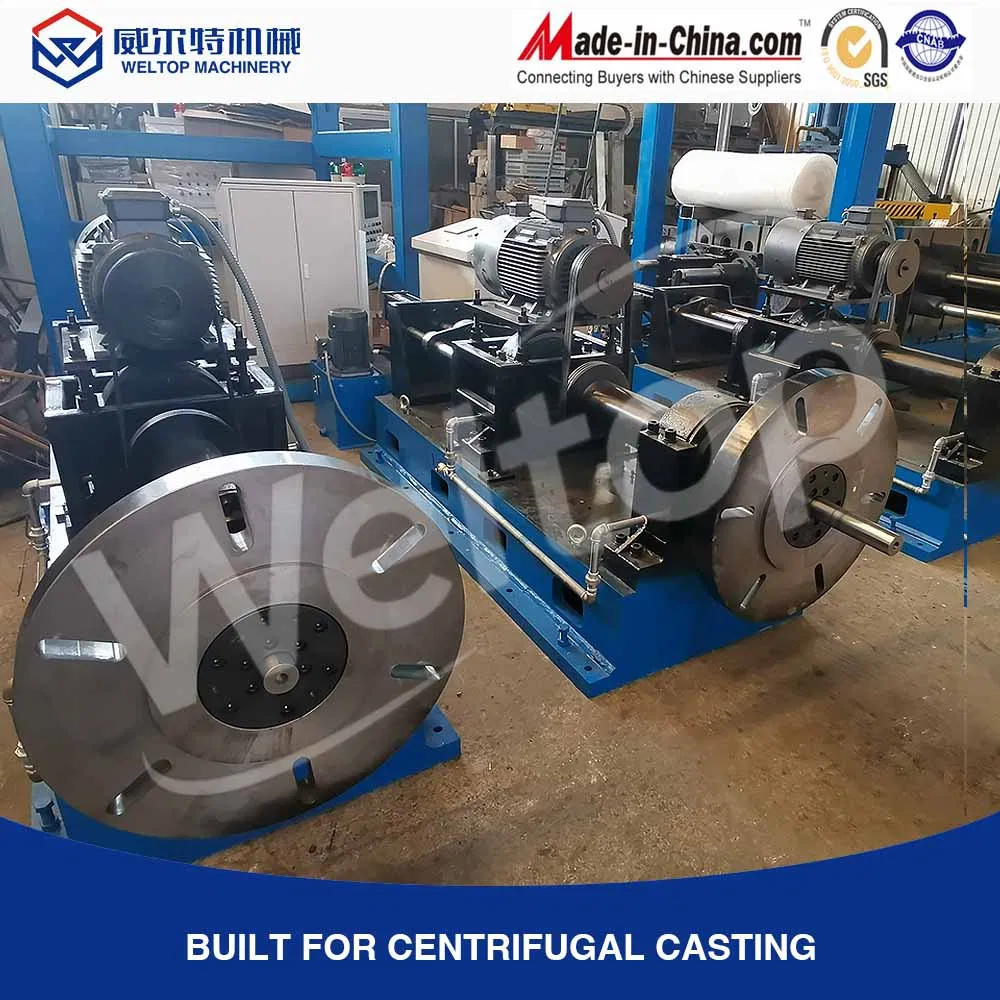

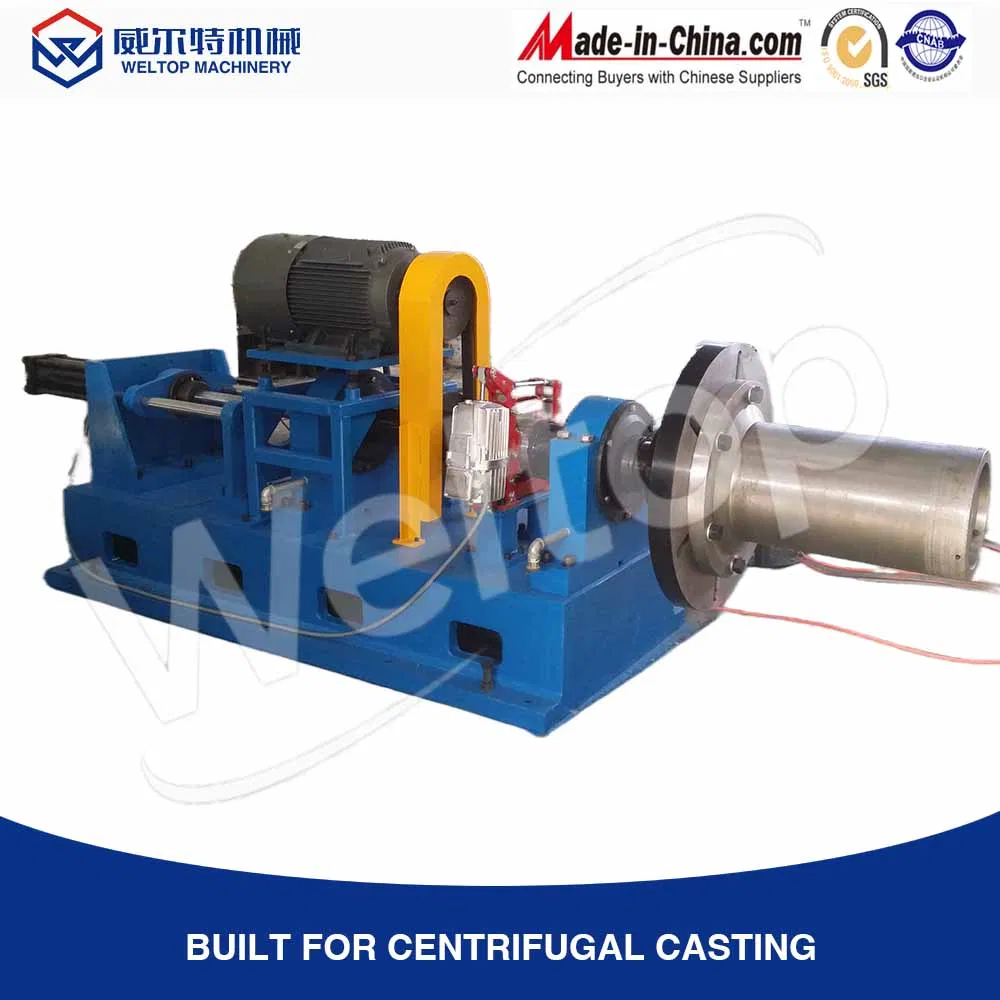

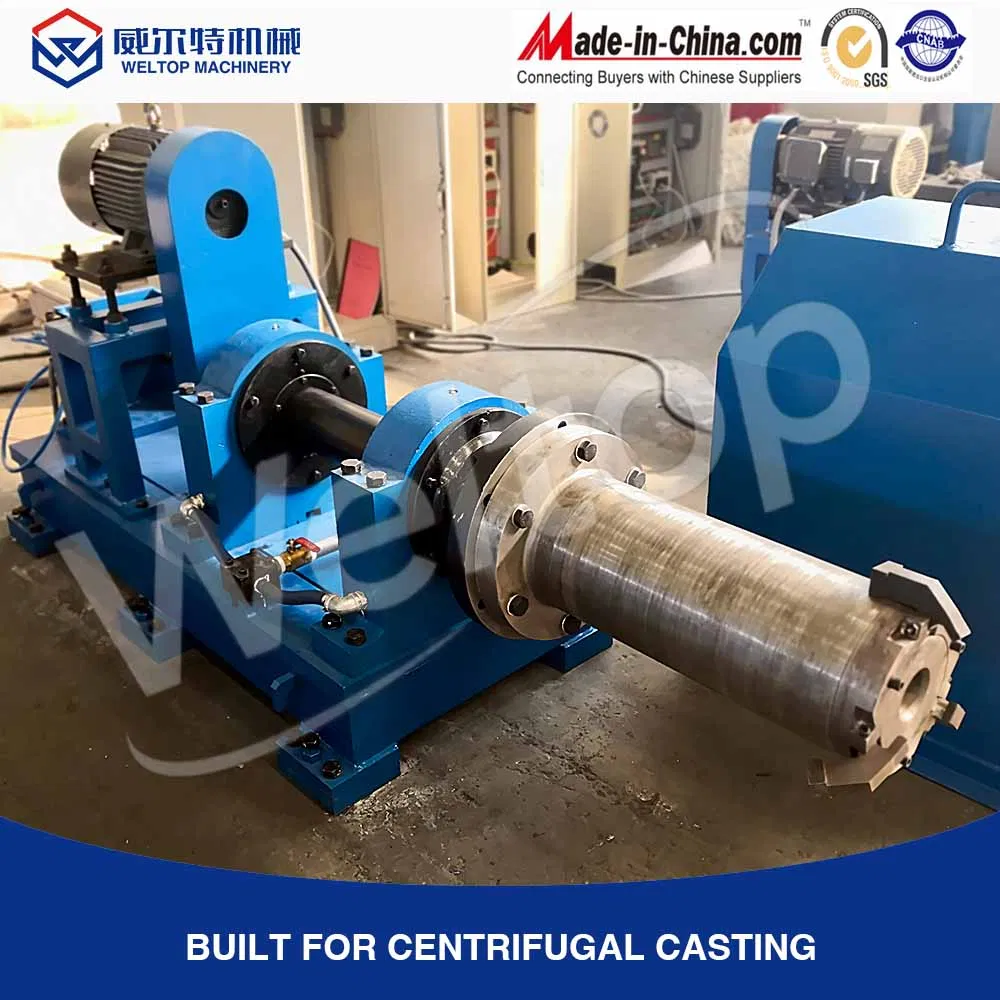

The J518 is a high-capacity horizontal cantilever centrifugal casting machine engineered for the production of large-diameter cylindrical components up to 800mm in outer diameter. Featuring an extra-heavy structural frame and intelligent process coordination, it delivers industrial-grade performance in demanding foundry environments.
The reinforced cantilever frame minimizes deflection during rotation, ensuring dimensional stability even for heavy molds and thick-walled castings.
The control system automatically coordinates pouring start time, cooling initiation, and ejection timing—eliminating manual intervention and phase errors.
Combines intermittent mold spray with continuous bearing circulation cooling to balance solidification control and mechanical protection.
Each production cycle can be logged with key parameters (speed profile, cooling duration, etc.), supporting quality documentation and process optimization.
| No. | Parameter | Values | Unit |
|---|---|---|---|
| 1 | Casting maximum diameter | Φ800 | mm |
| 2 | Casting minimum diameter | Φ150 | mm |
| 3 | Casting maximum length | 600 | mm |
| 4 | The maximum load (die + mold) | 1 | Tons |
| 5 | Main machine motor power | 22 | Kw |
| 6 | Speed of mold | 0--1000 | rpm |
| 7 | Hydraulic pump motor power | 4 | Kw |
| 8 | Ejector force | 100 | KN |
| 9 | Ejector stroke | 600 | mm |
