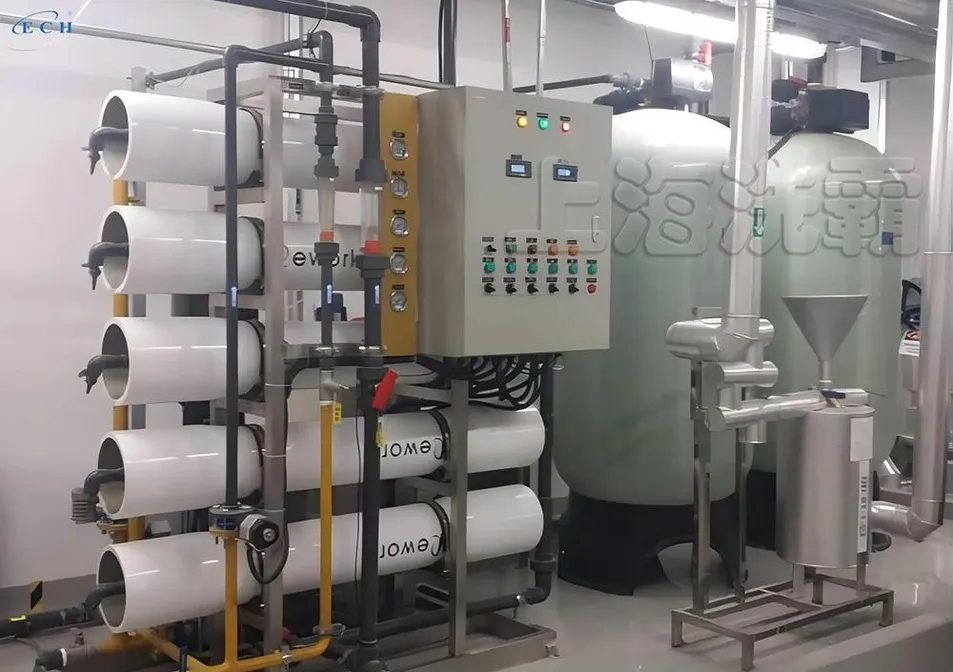

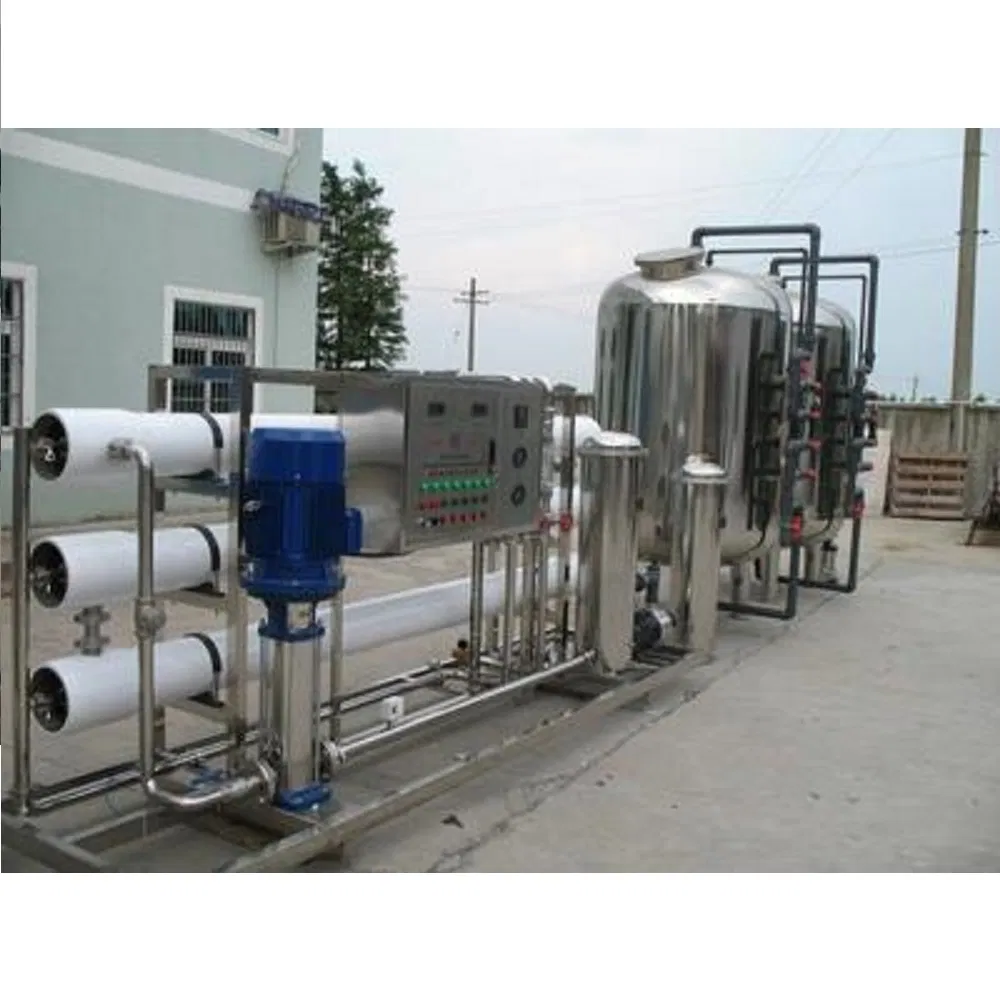

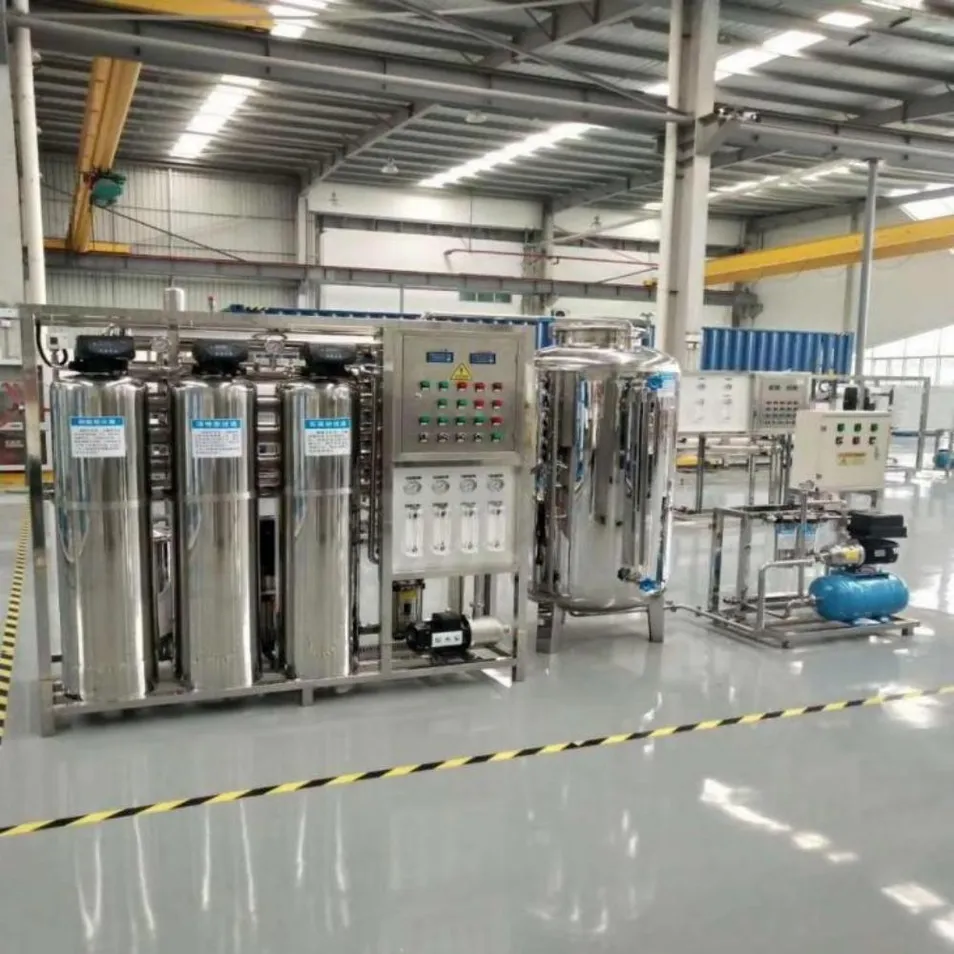

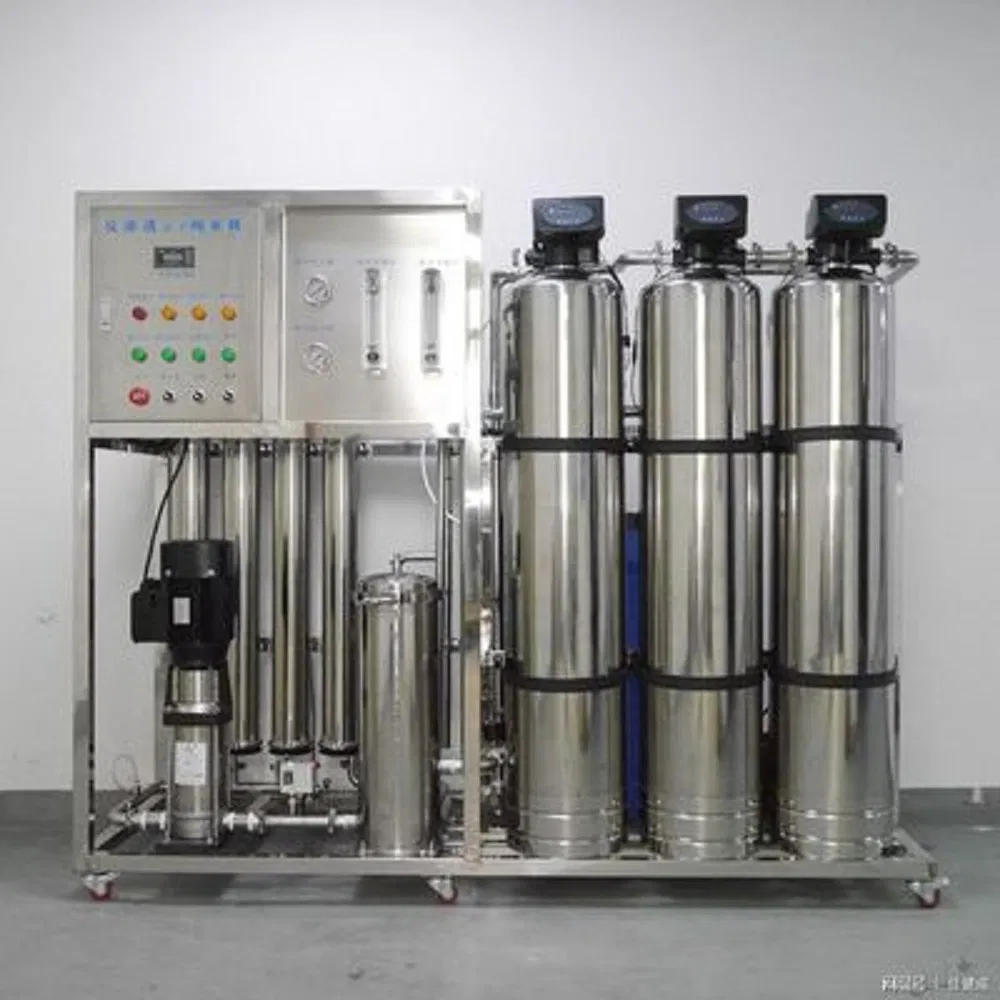

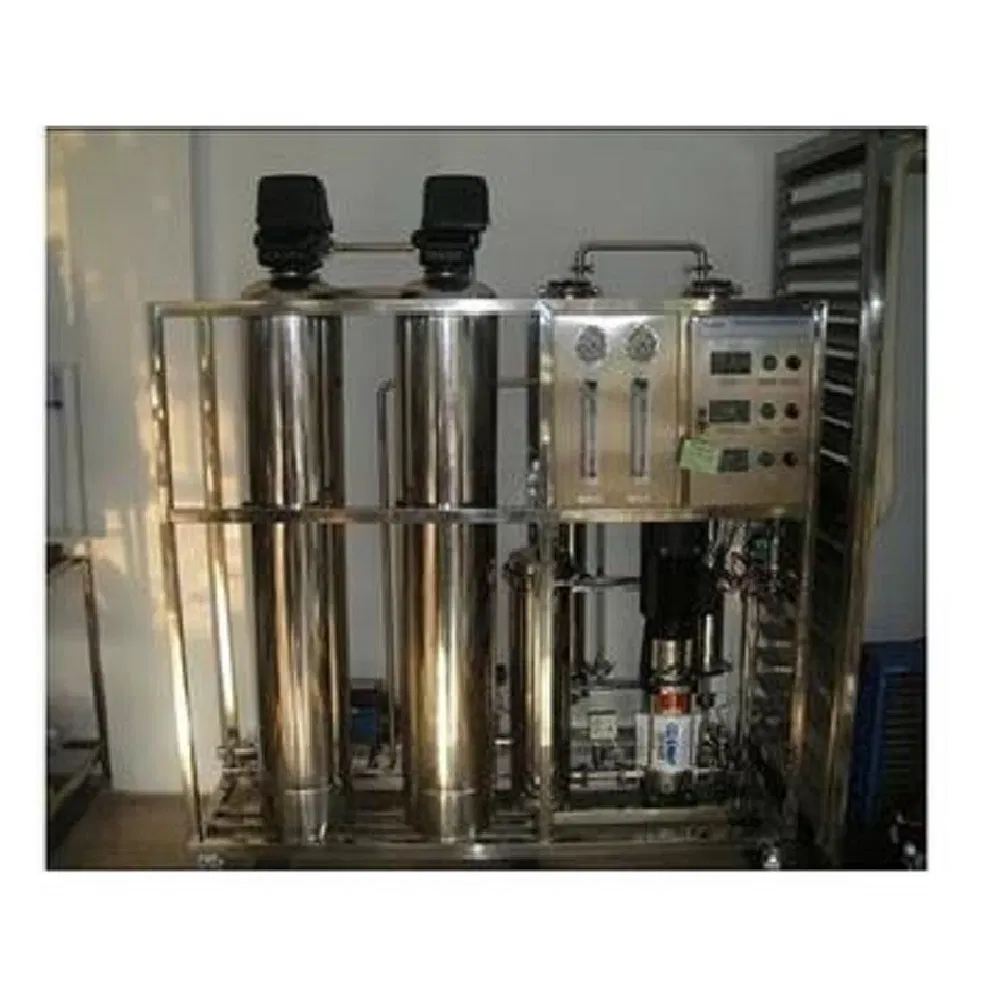

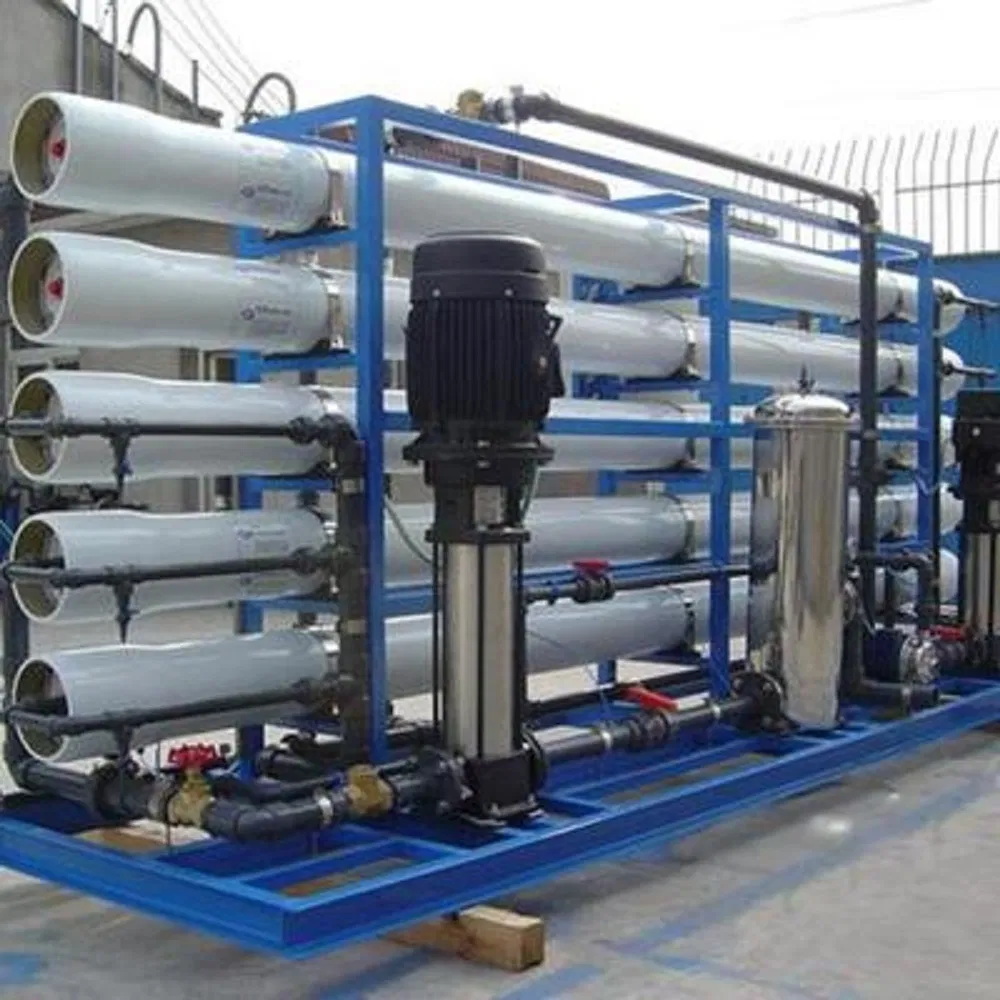

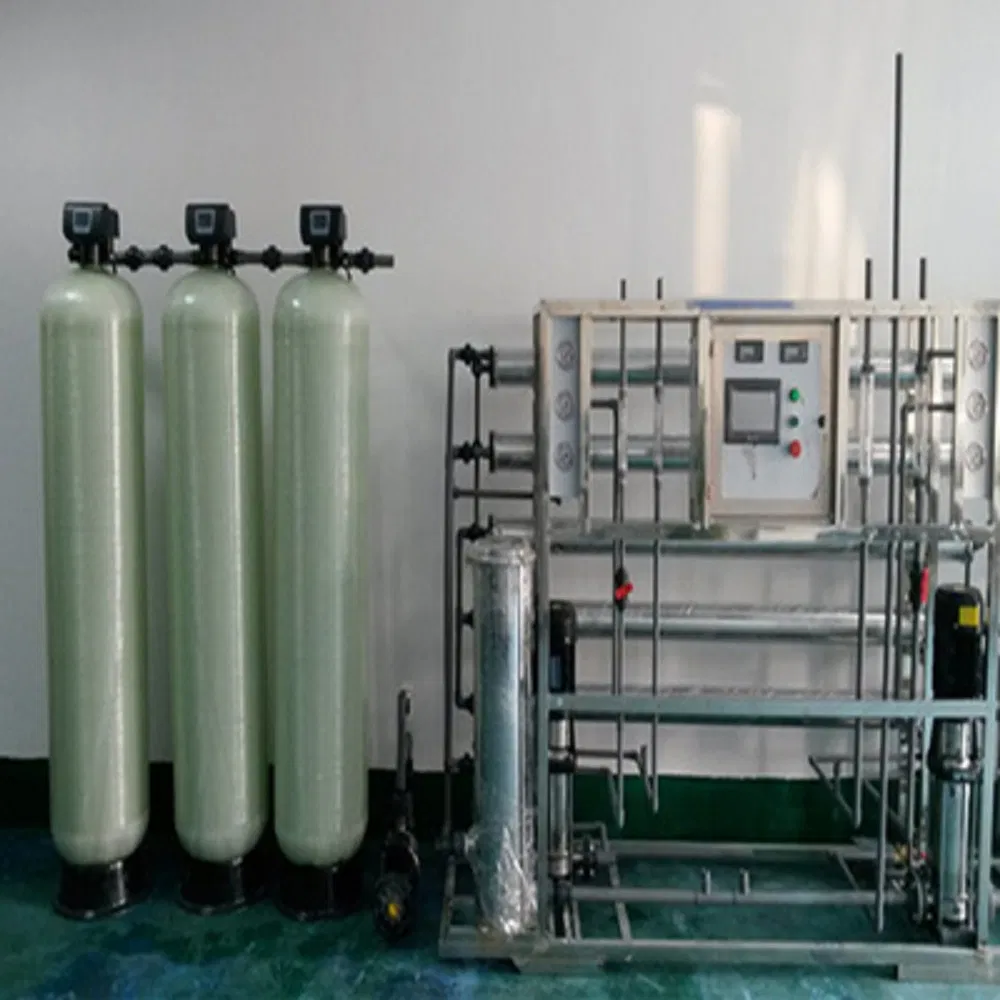

This 0.5m³/h reverse osmosis (RO) water treatment system integrates pretreatment, membrane separation, and intelligent control into one unit. The pretreatment system combines multi-media filters, activated carbon filters, water softeners, and cartridge filters to effectively protect the RO membranes. The RO unit utilizes three low-pressure 4040 composite membranes, ensuring product water conductivity ≤20μS/cm, with core advantages including high energy efficiency, stable and reliable performance, and fully automatic operation.
Key wetted components are constructed with SS304 stainless steel, FRP, or UPVC materials, making the system suitable for food, electronics, and pharmaceutical industries.
| Category | Item | Specifications | Material | Qty |
|---|---|---|---|---|
| Pretreatment | ||||
| Water Tank | Raw Water Tank | 1000L | SS304 | 1 set |
| Filtration | Multi-media Filter | Φ350×H1650mm | FRP | 1 set |
| Filtration | Activated Carbon Filter | Φ350×H1850mm | FRP | 1 set |
| Softening | Softener | Φ250×H1650mm | FRP | 1 set |
| Safety | Cartridge Filter | Φ220×H1000m, 5μm | SS304 | 1 set |
| RO System | ||||
| Pumping | High Pressure Pump | 1.0m³/h, 104m, 1.5kW | SS304 | 1 |
| Membrane | RO Membrane | Low-pressure 4040 | - | 3 |
| Housing | Membrane Housing | 4040-1W | SS304 | 3 |
| Monitoring | Conductivity Meter | 0-20μS/cm | - | 2 |
| Pure Water Storage & Booster | ||||
| Storage | Pure Water Tank | 1000L | - | 1 set |
| Booster | Booster Pump | 2.0m³/h, 44m, 0.75kW | SS304 | 1 |
| Control System | ||||
| Control | Control System | PLC Automatic Control | - | 1 set |
| Cabinet | Control Cabinet | L600*W300*H800 | SS304 | 1 |
Founded in 1994, we are a professional service provider of integrated solutions for water treatment technology. Our expertise covers multiple qualifications, including safety production permits and certifications for quality, environment, and health management systems. We are recognized as a National High-tech Enterprise with extensive global project delivery experience across Indonesia, Ethiopia, Pakistan, and the USA.
