Advanced Qh-Mbr Membrane System for Superior Water Filtration

Certification:	ISO9001, RoHS, CE
Salt Rejection Rate:	98.0%
Application:	Industry

Product Description

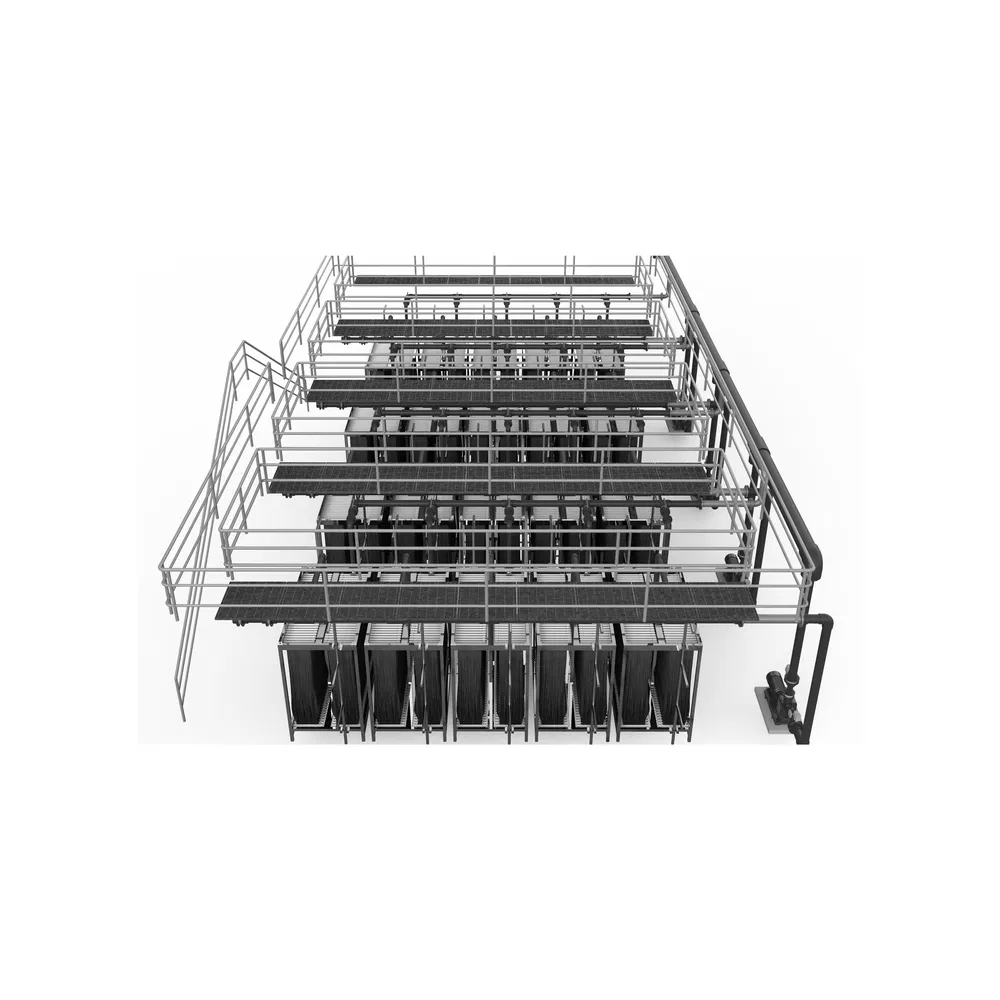

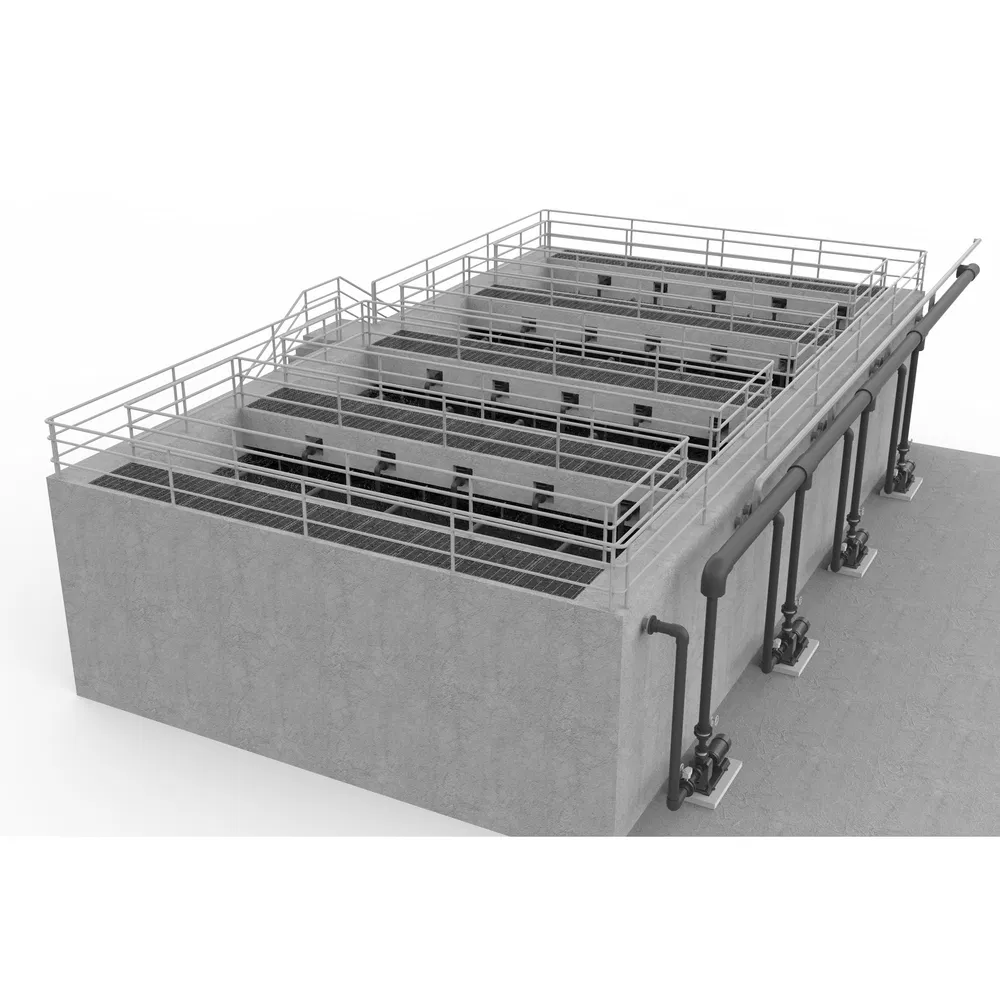

MBR SYSTEM: The MBR system combines biological treatment with membrane filtration technology to deliver superior wastewater treatment solutions. This advanced membrane bioreactor system features high-efficiency solid-liquid separation, compact design, and automated operation for various industrial and municipal applications. The system ensures consistent effluent quality, reduced footprint, and enhanced nutrient removal while maintaining operational flexibility.

Key Advantages

Superior Filtration

Advanced membrane technology delivers exceptional water quality output, eliminating suspended solids and producing crystal-clear effluent.

Space-Saving

Compact footprint reduces installation area requirements significantly compared to traditional systems.

Operational Efficiency

Automated control systems minimize manual intervention while maximizing treatment capacity.

Modular Design

Allows seamless capacity expansion to accommodate future growth without major infrastructure modifications.

Technical Parameters

Parameter	Specification
Model NO.	QH-MBR
Capacity	400 Gallon
Method	Physical Treatment
Usage	Industrial, Agriculture, Hospital
Membrane Main Material	PVDF (Graphene Modified)
Nominal Pore Size	0.2µm
Flow Direction	Outside-In

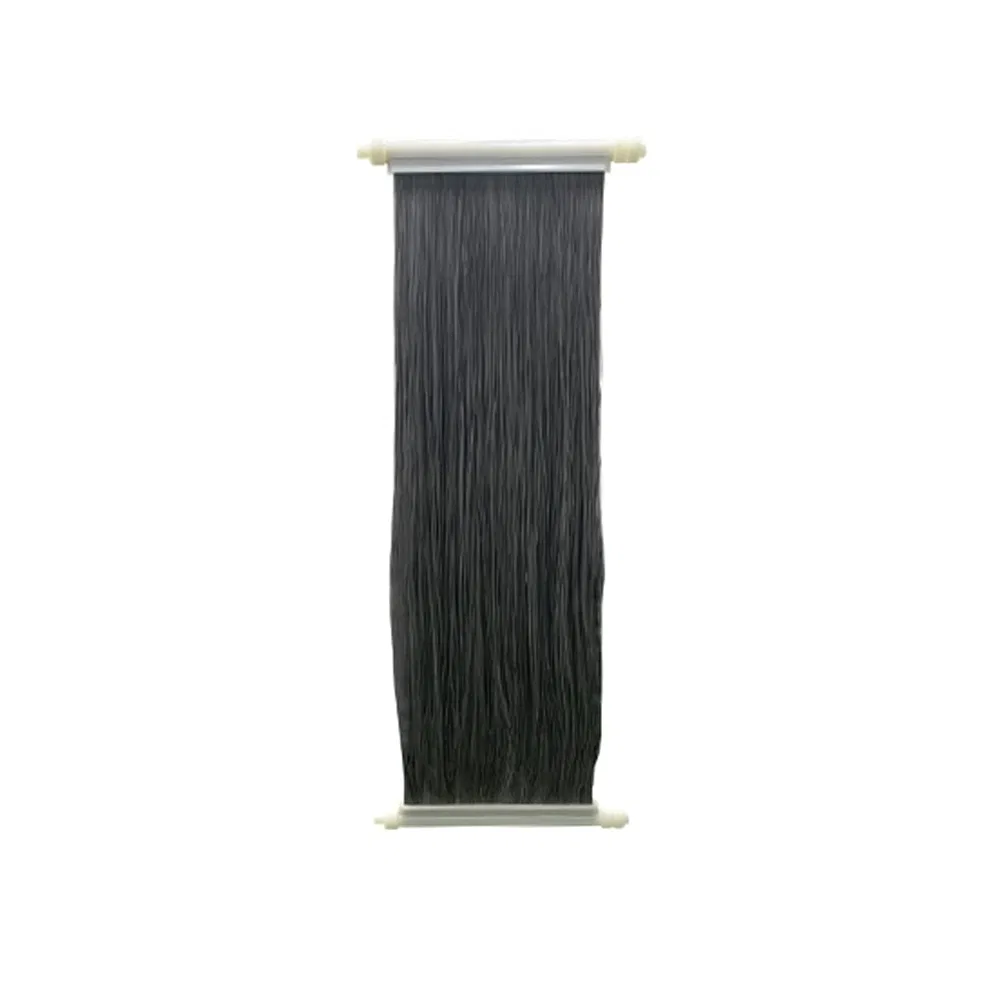

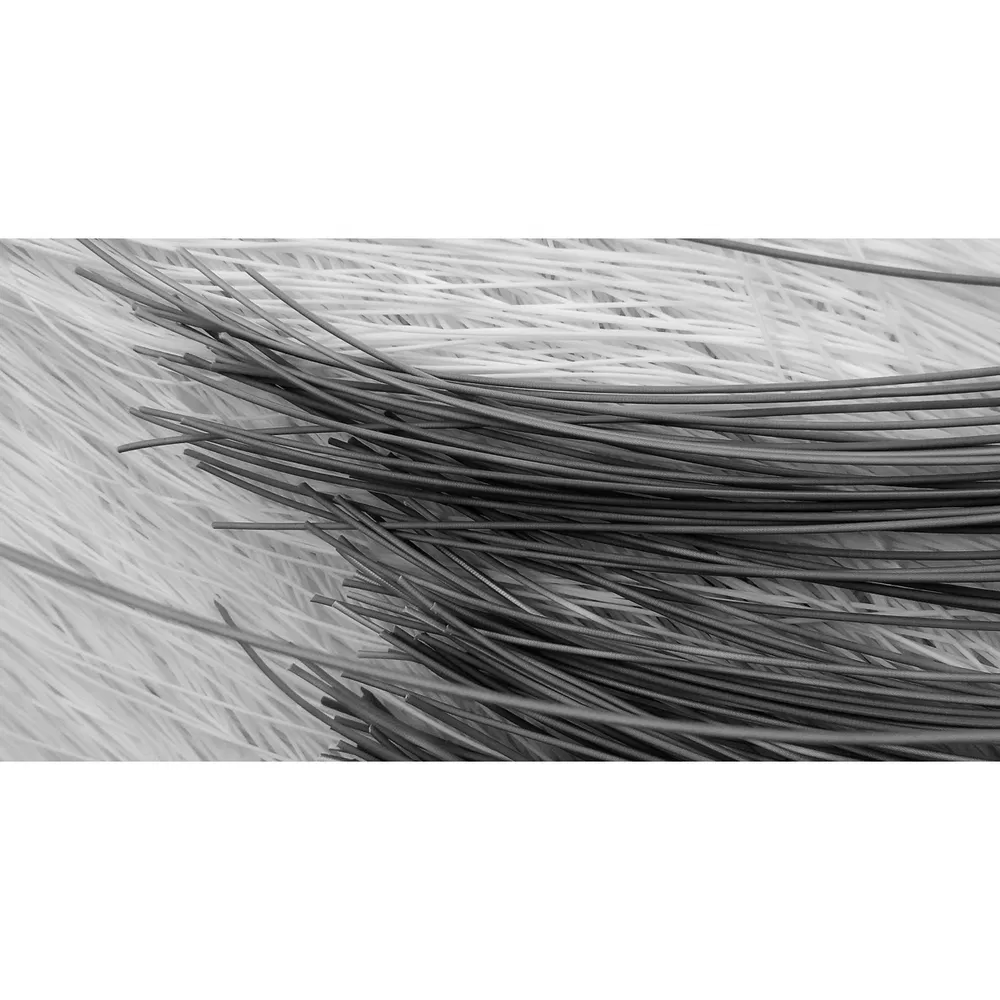

Membrane Type	Hollow Fiber
Fiber Diameter (ID/OD)	1.0mm / 2.0mm
Housing Material	PVC-U
Max. Transmembrane Pressure	0.5Bar
Filtration Flux	10~60 LMH
PH Range (Operation)	2~12

Detailed Photos

Frequently Asked Questions

Q1: What are the primary applications of the QH-MBR system? A: The system is highly versatile and ideal for industrial wastewater treatment, agricultural irrigation water recovery, and hospital sewage processing.

Q2: What material is used for the membrane and what are its benefits? A: The system uses Graphene Modified PVDF. This material provides superior chemical resistance, enhanced durability, and better anti-fouling properties compared to standard materials.

Q3: Does the system support customization for specific project requirements? A: Yes, we support on-demand customization including color, appearance size, and technical specifications to fit your facility's unique needs.

Q4: What is the maintenance and cleaning procedure? A: The system features automated cleaning cycles, including air and water backwashing. It also supports EFM and CIP cleaning with specified concentrations of HCl, Citric Acid, or NaOH/NaClO.

Q5: How does the MBR system save space? A: By combining biological treatment and membrane filtration into a single integrated process, it eliminates the need for secondary clarifiers, significantly reducing the overall footprint.

Q6: What payment and transportation methods are available? A: We support various payment methods including T/T, Western Union, and PayPal. Transportation can be arranged via sea, air, or land depending on the destination and cargo conditions.
