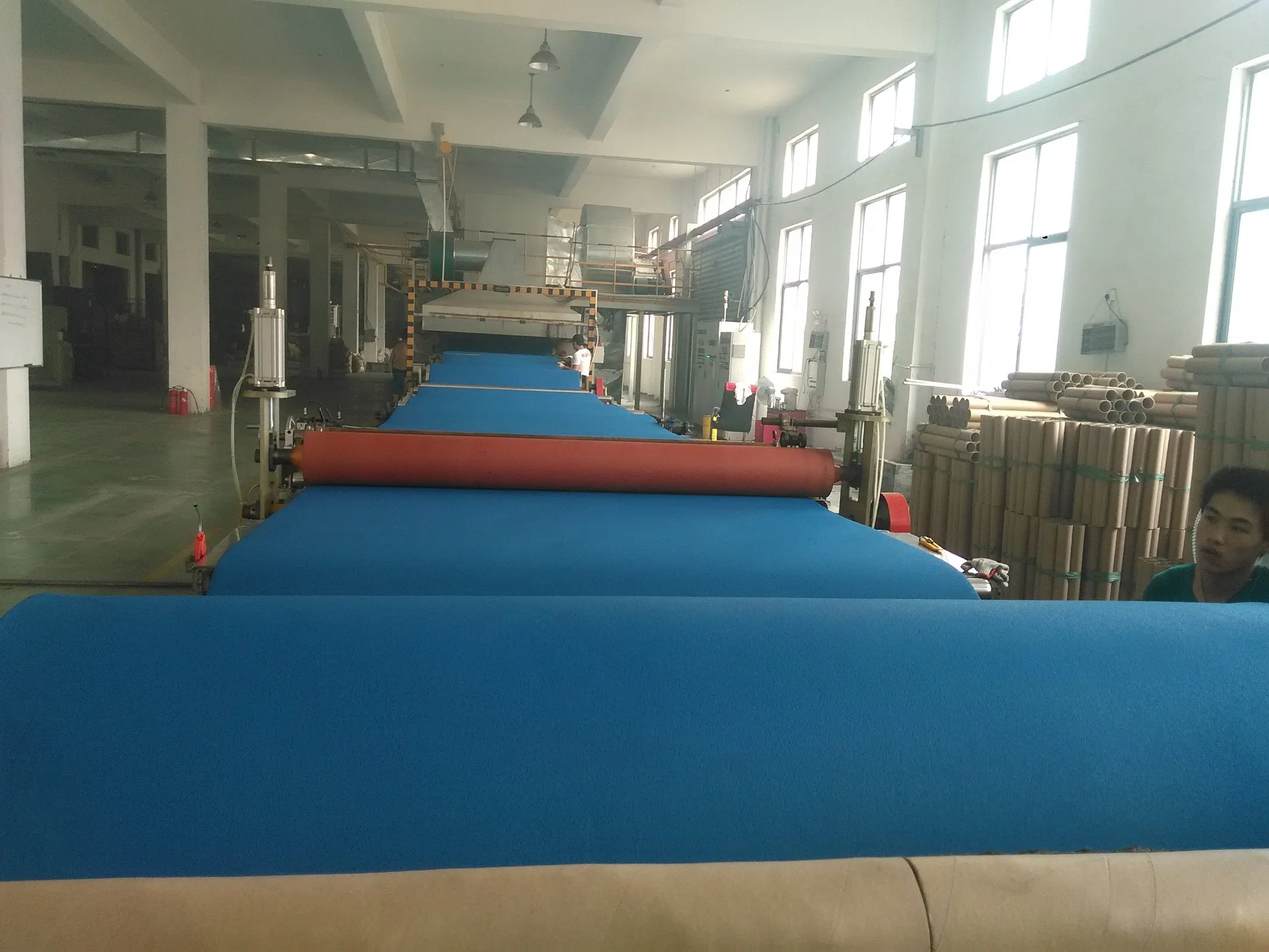

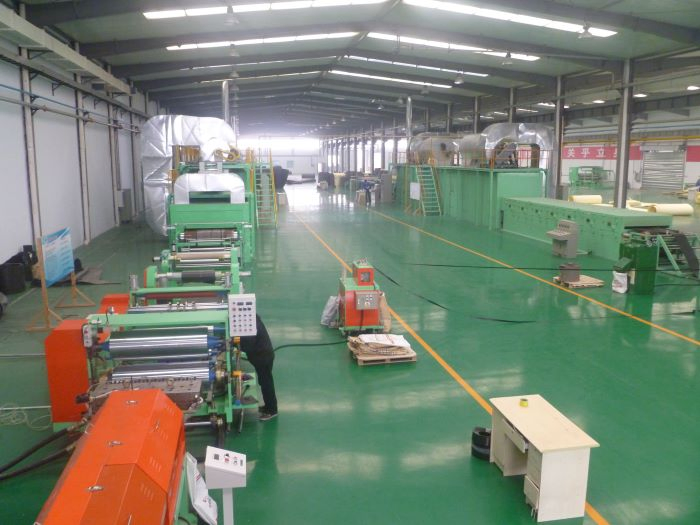

XPE XLPE IXPE cross-linked foaming machine production line consists of a granulation system, a mixed ingredient conveying system, a sheet extruder, a gas heating Horizontal foaming furnace and a winding auxiliary machine. This foaming production line is designed and manufactured according to the XPE production process, specializing in the production of XPE products.

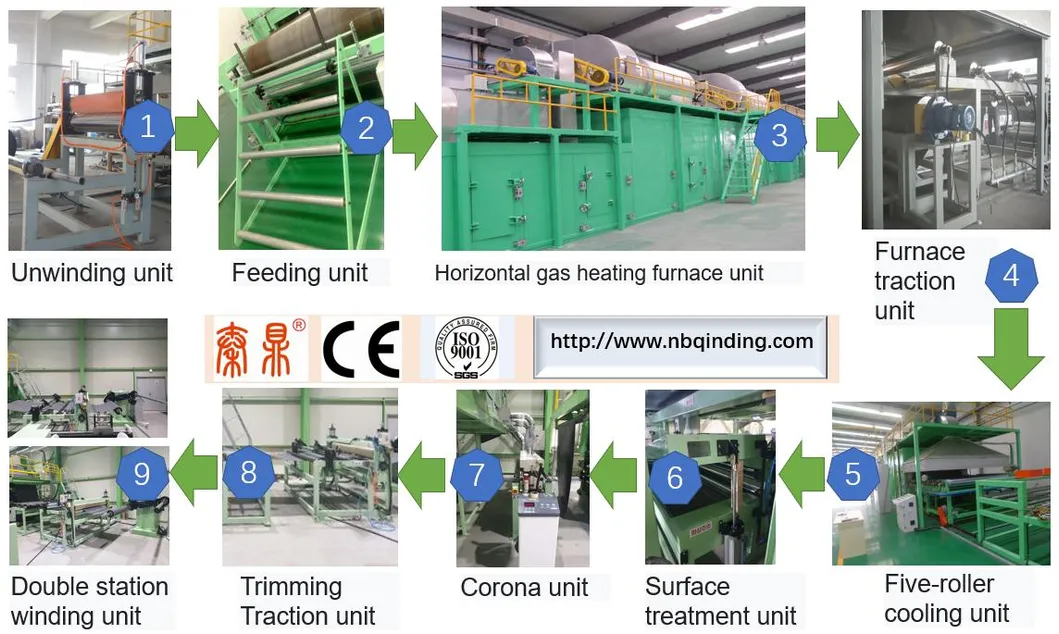

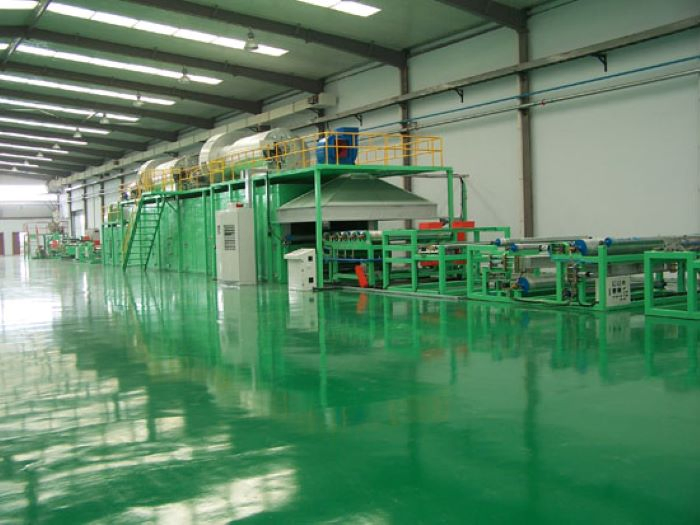

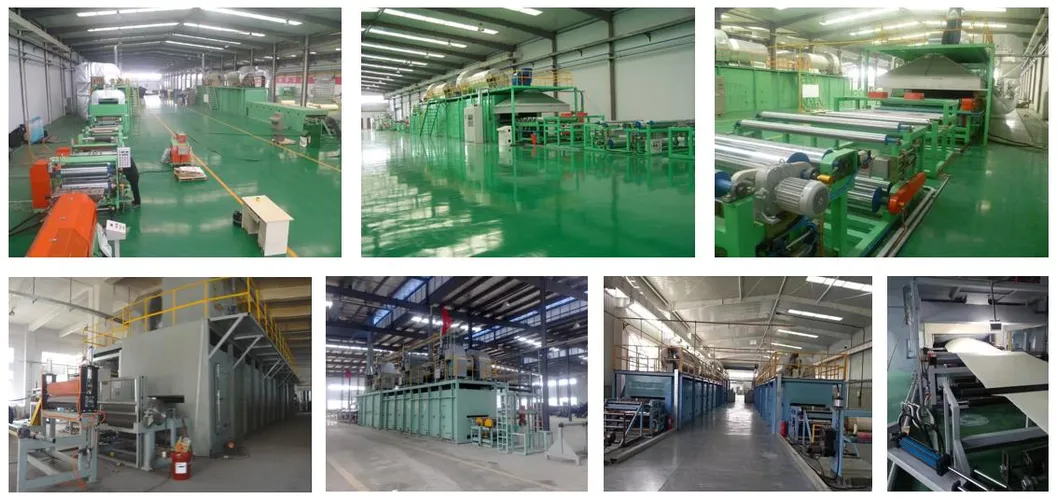

This foaming furnace is a horizontal furnace, which mainly produces chemically cross-linked polyethylene foamed products. It has the advantages of large output, uniform width and thickness of products, high efficiency, convenient maintenance and stable production. The equipment includes an unwinder, a 22m horizontal furnace, a combustion unit, a 5-roller cooling machine at the furnace mouth, a correction machine, a trimming machine, a sheet traction machine, and a double-station winder.

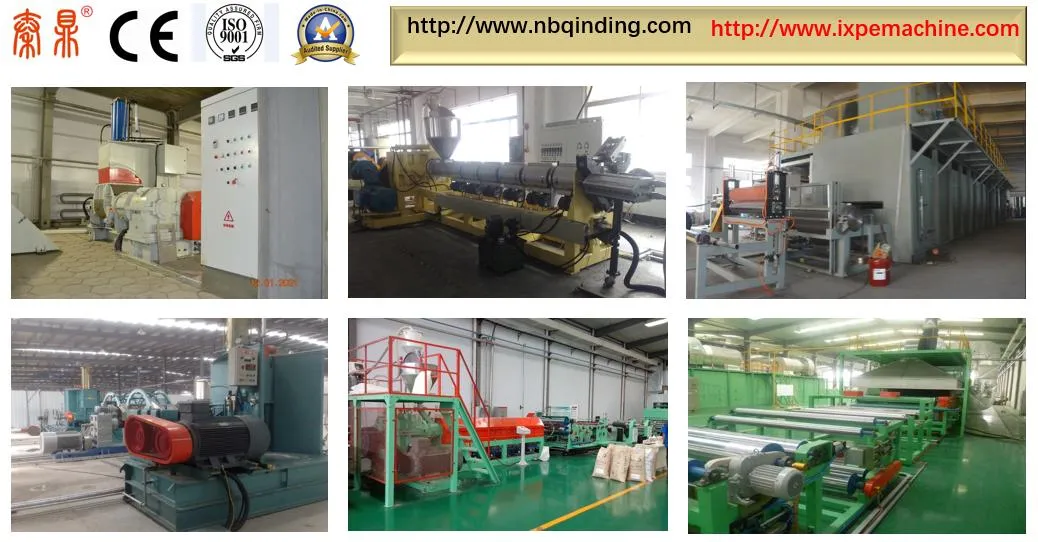

Detailed Production Process

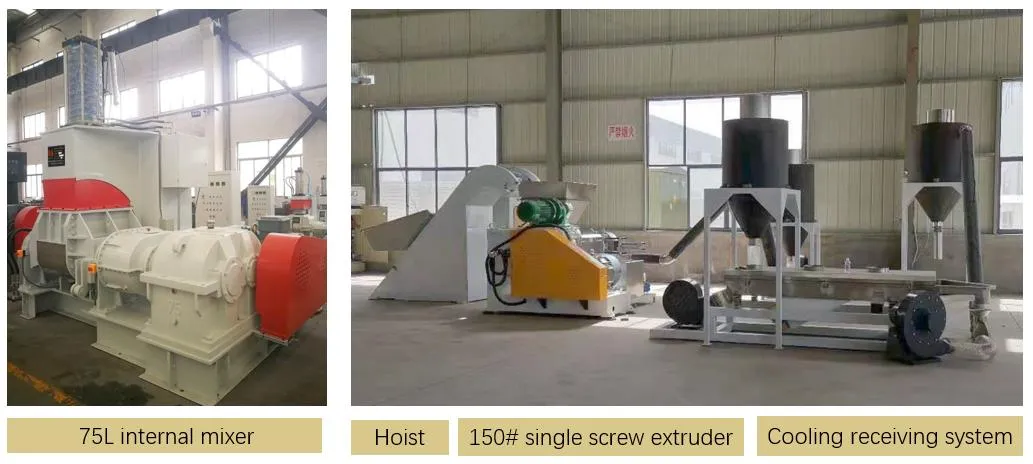

1. Granulation Unit: Adopts a 75L internal mixer and 150# single screw extruder. The internal mixer chamber features fast electric heating and excellent heat preservation. PLC integrated control realizes constant temperature and automatic banburying.

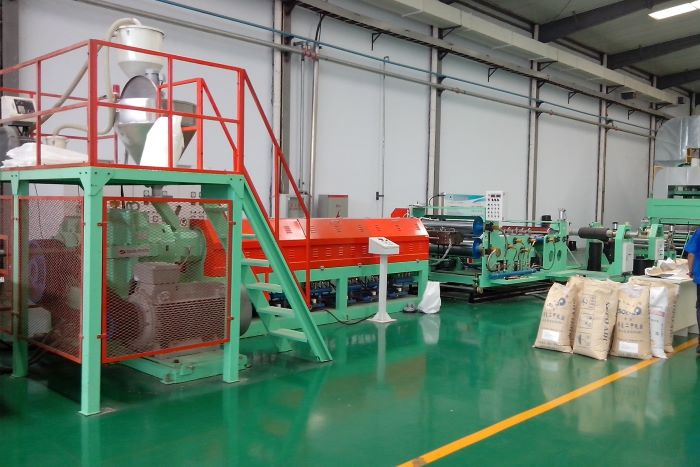

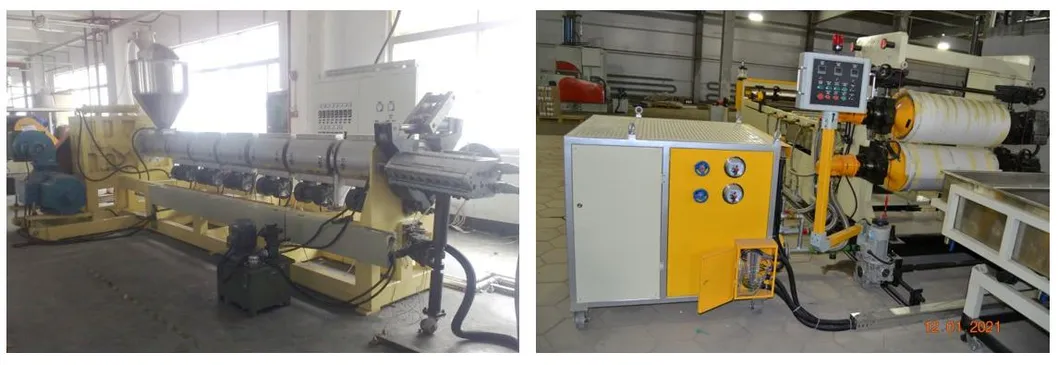

2. Master Sheet Extruder: Usually uses 150# or 160# single screw extruder. Sheet width ranges from 500-900mm with thickness of 0.5-5mm. Surface is smooth and output is uniform.

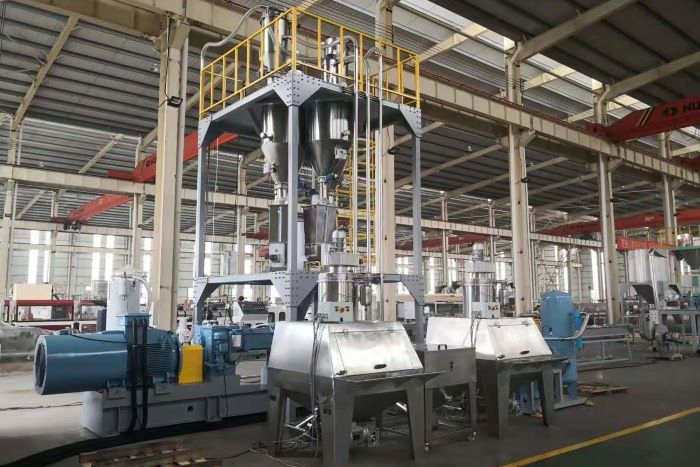

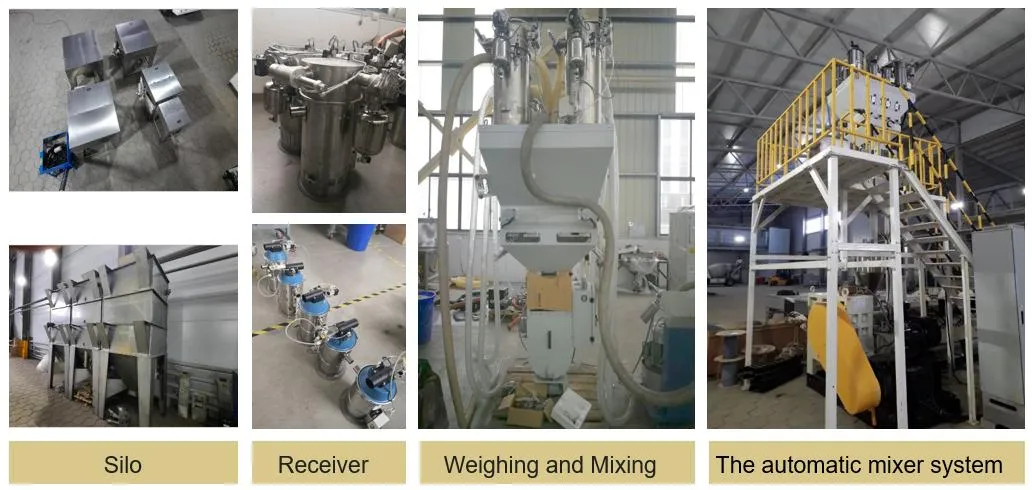

3. Automatic Mixer: A human-computer interaction system with formula storage, automatic feeding, and weighing functions. Applicable for liquid, powder, pellets, and blocks with zero residue and easy cleaning.
4. Horizontal Foaming Furnace: Utilizes gas heating for chemical cross-linking. Supports 5-40 times foaming ratio with output up to 250-300kg/h.
Technical Parameters
Model
Unit
QDL-2000/2-15L
QDL-2500/5-23L
Max. Effective Width
mm
1850
2200
Product Thickness Range
mm
2-15
5-23
Foaming Range
times
5-40
5-40
Heating Mode
-
Gas Heating
Gas Heating
Electric Power
kW
55
55
Burner Power
kW
100+300+300
100+300+300
Yield
kg/h
200
300
Total Equipment Length
m
35
35
Expertise & Certifications

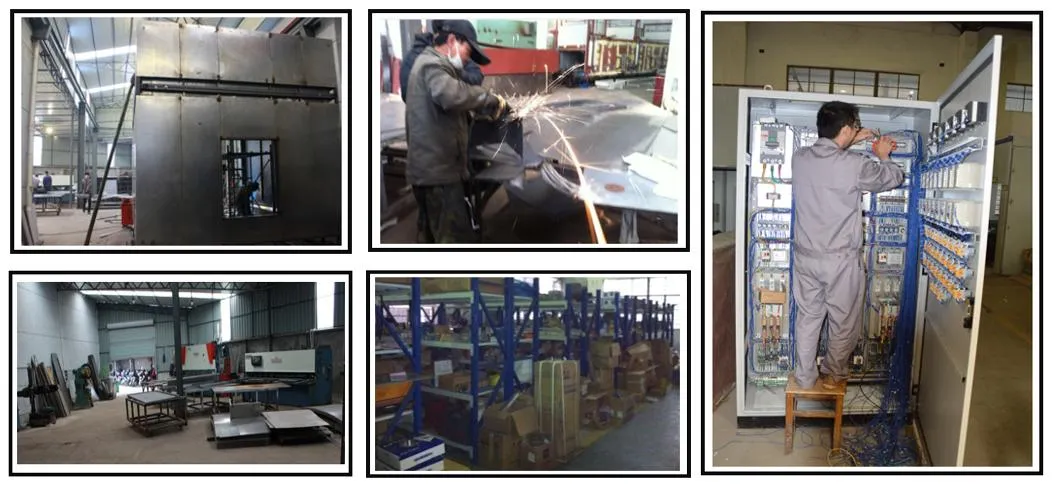

The technical team is led by senior engineers with over 20 years of experience in the PE foam industry. Holding numerous invention patents for XPE and IXPE machinery, the technology is constantly updated to adapt to new formulas and processes. The production lines have successfully passed EU CE certification and serve a global customer base.
Service Commitment
Pre-sale: Detailed production line configuration plans and workshop layout assistance.

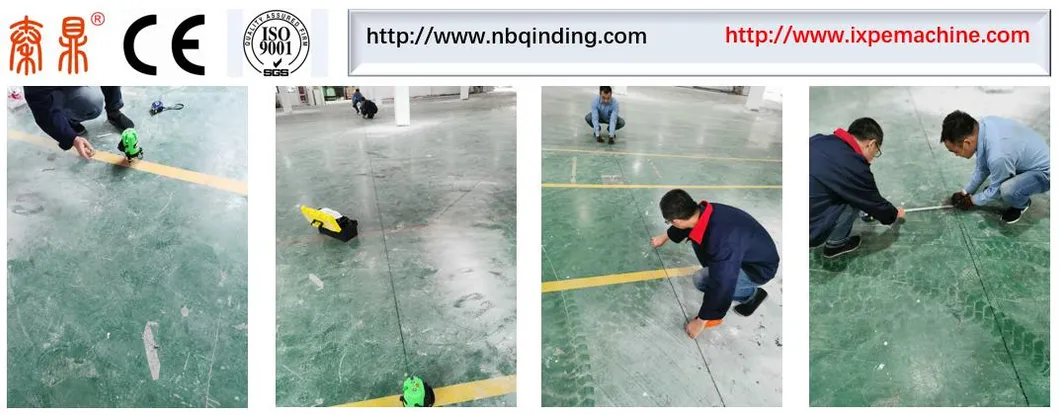

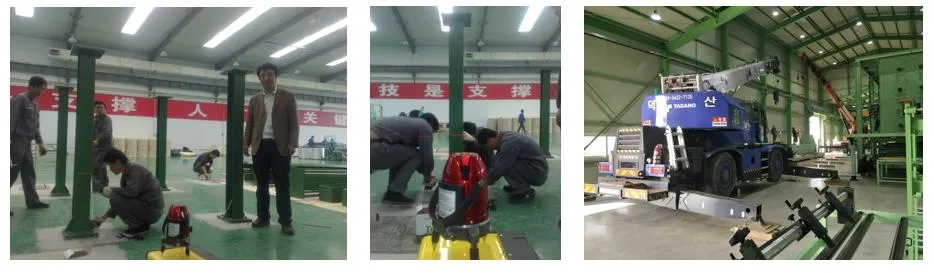

In-sale: Equipment basic drawings, assistance with utilities layout, and onsite installation by professional engineers.

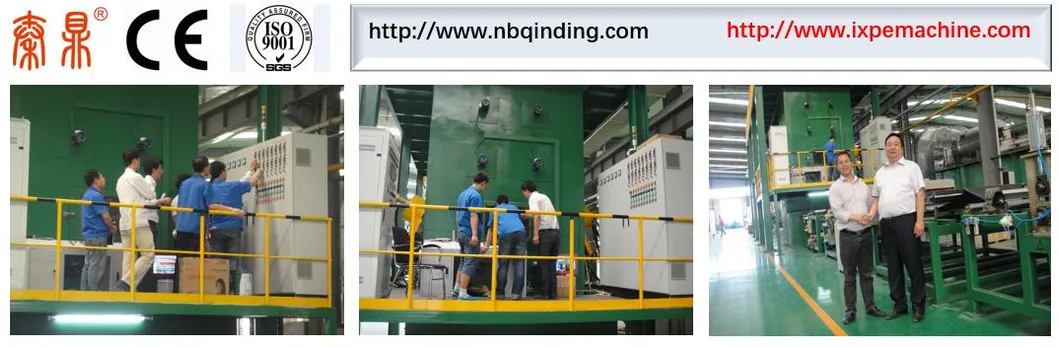

Personnel Training: 2-week onsite process training and delivery of technical formulas and adjustment principles.
After-sales: One-year equipment guarantee and lifetime maintenance support.
Frequently Asked Questions
How long is your lead time?
Normally it's about 10-25 weeks after order confirmed and deposit received.
What kind of services can you provide?
We specialize in manufacturing XPE/IXPE Foaming equipment. Our services include installation, setup, providing raw material formulas, and technical process parameters.
Can you train operators for new XPE / IXPE enterprises?
Yes, we provide comprehensive operator training services to help new enterprises enter normal production in the shortest time possible.
Are there any vulnerable parts and how are they handled?
Yes, we provide an adequate quantity of spare parts shipped together with the machines to ensure continuous operation.
How long is the guarantee period?
The guarantee period is two years from the date the equipment leaves the factory. During this time, normal damaged spare parts are provided for free.
What is the foaming ratio and thickness range?
The production line supports a foaming magnification of 5~40 times, with a product thickness range of 2~23mm.
